Programmable signal conditioning devices
Programmable devices
Programmable devices are capable of recording, storing, and executing various programs or instructions within process control systems. They enable the control of automated operations and programmed process management.
PR Electronics’ programmable signal conditioning devices support the processing and conversion of analog or digital signals, optimizing system performance and flexibility.
Choose from our products!
PR 5106ABA – HART, intrinsically safe isolating transmitter, 1 channel, 3.75 kV
Input:
- Current measurement: 4–20 mA
- Accuracy: 0.1%
- Passive/active mode: input/output
Output:
- Current: 4–20 mA
- Power supply: 230V AC / 24V DC
- Programming/display: HART / PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / HART
- Isolation: 3.75 kV AC
PR 5106BBA – EX, HART, intrinsically safe isolating transmitter, 1 channel, 3.75 kV
Input:
- Current measurement: 4–20 mA
- Accuracy: 0.1%
- Passive/active mode: input/output
Output:
- Current: 4–20 mA
- Power supply: 230V AC / 24V DC
- Programming/display: HART / PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / HART
- Isolation: 3.75 kV AC
- ATEX: II 1 G Ex ia IIC
PR 5115A – Signal calculator with the four arithmetical operations
Input:
- Temperature measurement: RTD / TC
- Resistance measurement: ohm, potentiometer
- Voltage measurement: 0–250 V DC and –150 to +150 mV
- Current measurement: 0–100 mA
- Accuracy: 0.05%
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Passive/active mode: output
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED
- Isolation: 3.75 kV AC

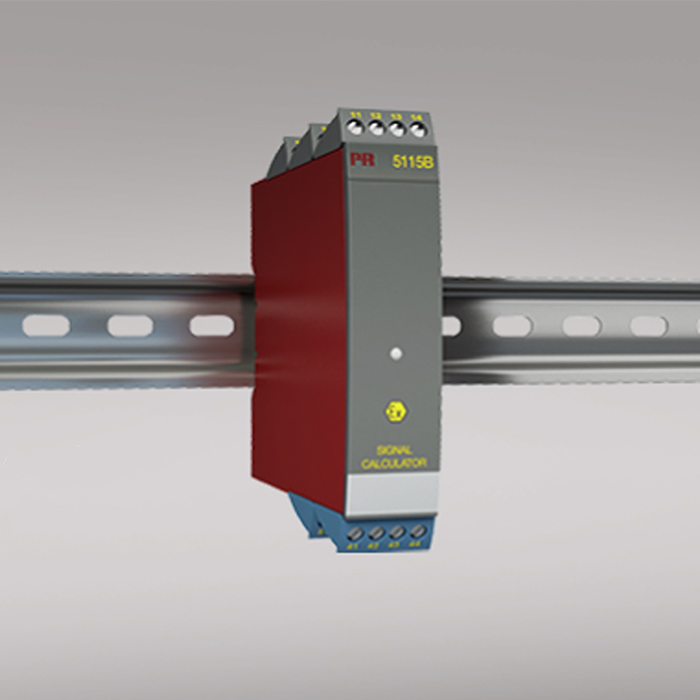

PR 5115B – EX, signal calculator with the four arithmetical operations
Input:
- Temperature measurement: RTD / TC
- Resistance measurement: ohm, potentiometer
- Voltage measurement: 0–250 V DC and –150 to +150 mV
- Current measurement: 0–100 mA
- Accuracy: 0.05%
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Passive/active mode: output
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED
- Isolation: 3.75 kV AC

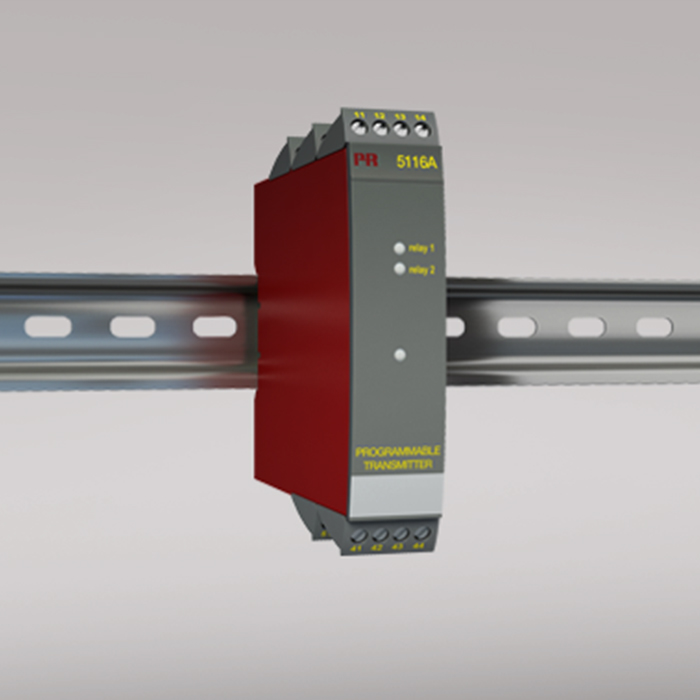

PR 5116A – Universal transmitter + 2 relays
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC and –2500 to +2500 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.05%
- Passive/active mode: output
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Relay contact: 2 programmable dry contacts, 500 VA AC
- Active/passive: input/output
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC
PR 5116B – EX Universal transmitter + 2 relays
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC and –2500 to +2500 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.05%
- Passive/active mode: output
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Relay contact: 2 programmable dry contacts, 500 VA AC
- Active/passive: input/output
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC
PR 5131AA – Loop-powered transmitter, 1 channel
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC and –150 to +150 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.1%
Output:
- Loop-powered: 4–20 mA
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC

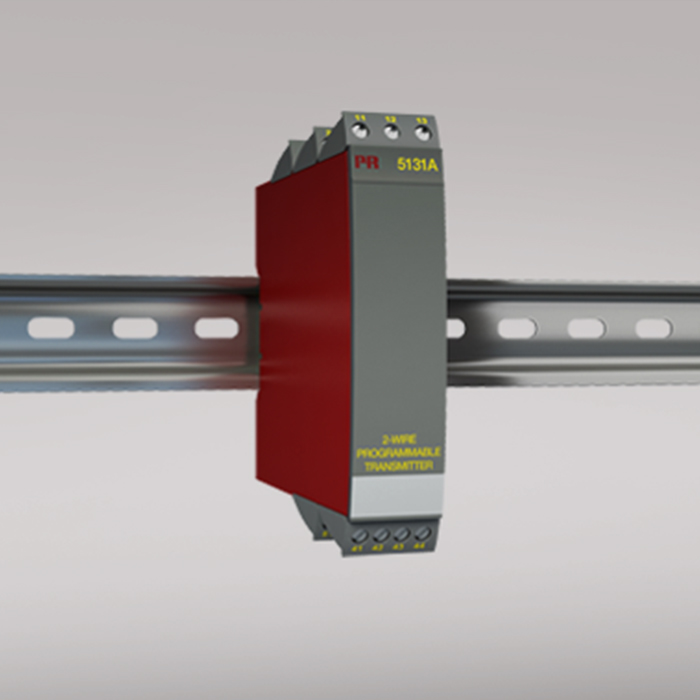

PR 5131AB – Loop-powered transmitter, 2 channels
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC // –150 to +150 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.1%
Output:
- Loop-powered: 4–20 mA
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC
PR 5131B1A – EX, Loop-powered transmitter, RTD/TC/mV/Linear R input, 1 channel
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC and –150 to +150 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.1%
Output:
- Loop-powered: 4–20 mA
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC

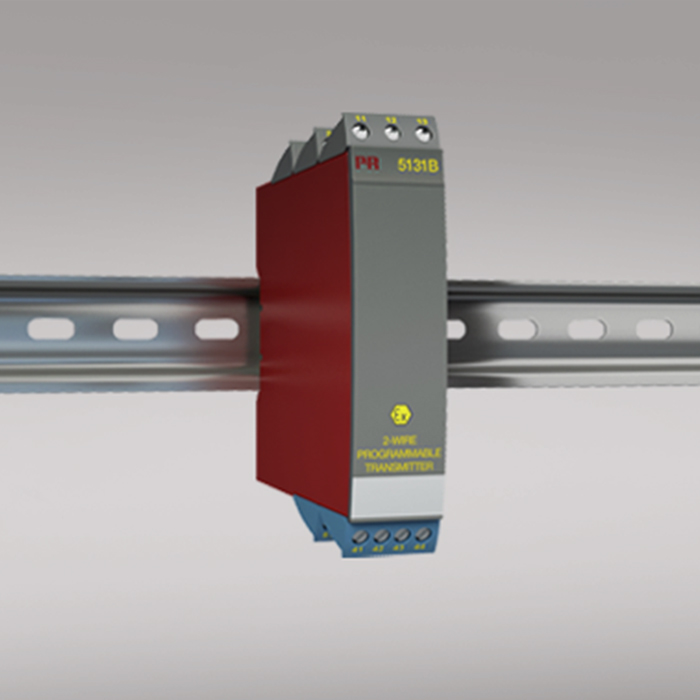

PR 5131B1B – EX, Loop-powered transmitter, RTD/TC/mV/Linear R input, 2 channels
Input:
- Temperature measurement: RTD / TC
- Voltage measurement: 0–250 V DC and –150 to +150 mV DC
- Current measurement: 0–100 mA
- Accuracy: 0.1%
Output:
- Loop-powered: 4–20 mA
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED / NAMUR
- Isolation: 3.75 kV AC
PR 5223A1 – F/I – F/F transmitter, DI input -> NPN/PNP output
Input sensor types:
- NAMUR
- Tacho
- NPN / PNP
- TTL
- S0
- Measuring range: 0–20 kHz
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Relay contact: dry contact 100 VA AC // maximum 20 Hz
- Power supply: 230 V AC // 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED
- Isolation: 3.75 kV AC
PR 5223B1 – EX, F/I – F/F transmitter, DI input -> NPN/PNP output
Input sensor type:
- NAMUR
- DI measuring range: 0–20 kHz
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Relay contact: dry contact 100 VA AC / maximum 20 Hz
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED
- Isolation: 3.75 kV AC
PR 5225A1 – Programmable f/I-f/f converter
Input sensor types:
- NAMUR
- Tacho
- NPN / PNP
- TTL
- S0
- Measuring range: 0–20 kHz
Output:
- Current: 0–20 mA
- Voltage: 0–10 V DC
- Relay contact: dry contact 100 VA AC / maximum 20 Hz
- Frequency generator mode
- Power supply: 230 V AC / 24 V DC
- Programming: PR 5909 + Preset software
- Self-diagnostics/loop error indication: LED
- Isolation: 3.75 kV AC
