Flow transmitters

Intra Itabar – Pitot tube flow meter, for chemical, oil, gas, and construction industry applications

Applications:

• Chemical industry
• Oil and gas industry
• Construction industry
• Hazardous areas

Features:

• Suitable for measuring steam, gases, or liquids
• Measuring range according to custom design
• Stainless steel construction
• Connections: weldable flange or threaded nozzle to pipe section, fixing eye on diagonal side
• Direct mounting with 3-way valve
• Optional with dP transmitter, with condensate pots for steam measurement, providing immediate proportional analog signal output

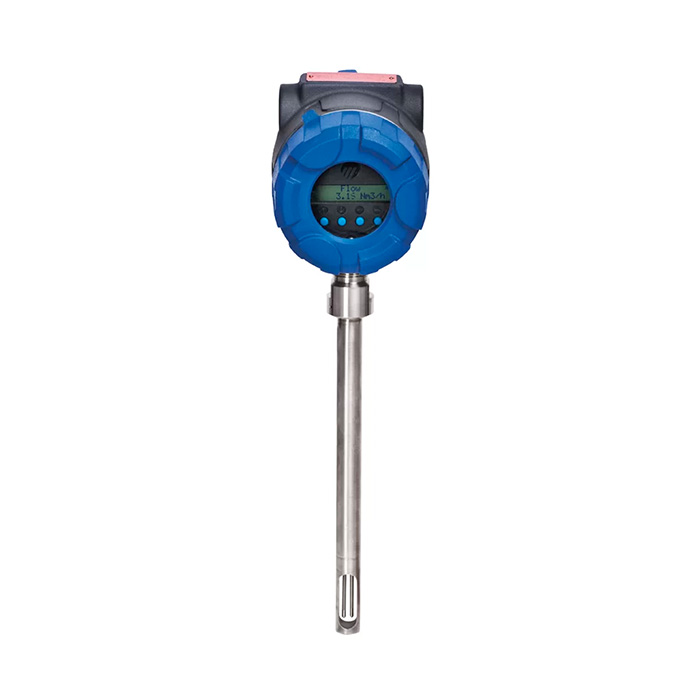

Magnetrol TA2 – High-performance, compact thermal mass flow meter

Features:

• Direct mass flow measurement of air and gases
• No temperature/pressure correction required
• Wide turndown ratio: 100:1
• Excellent low-flow sensitivity
• Low pressure drop
• Rotatable display module
• Maximum process temperature: up to +200 °C
• Nominal pressure: up to 103 bar, depending on process connection
• Probe can be field replaced

Yokogawa AXG – Yokogawa electromagnetic flow meter

4-wire magnetic flow meter with outstanding reliability, suitable for both water and industrial environments

Features:

• 4-wire magnetic flow meter
• Outstanding reliability
• Easy operation
• Replaceable electrode and self-diagnostics improve maintainability
• AXG features unique dual-frequency excitation (up to DN400) and its enhanced version
• Fieldbus communication version also available

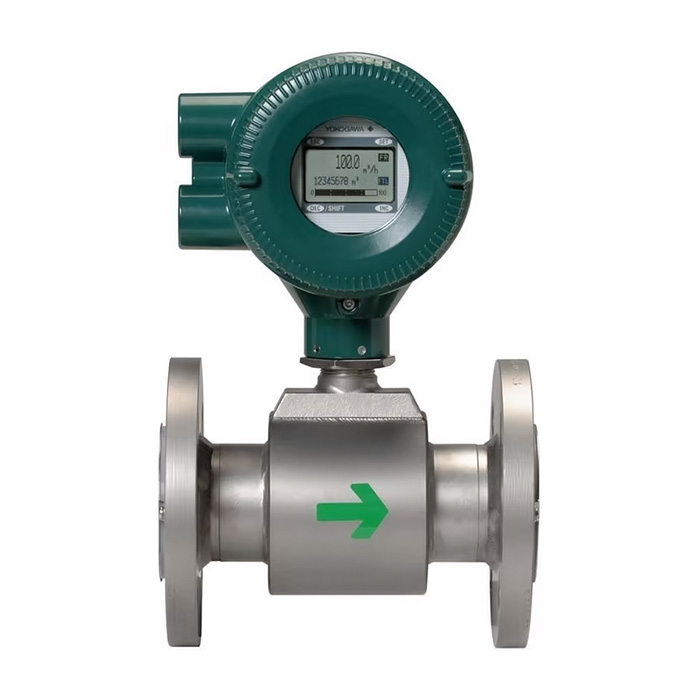

Yokogawa AXR – 2-wire electromagnetic flow meter, no external power supply required

Features:

• 2-wire magnetic flow meter, loop-powered, operates without external power supply
• Low initial investment cost
• The world’s first 2-wire magnetic flow meter
• Uses dual-frequency excitation
• Excellent stability and reliable operation
• User-friendly functions

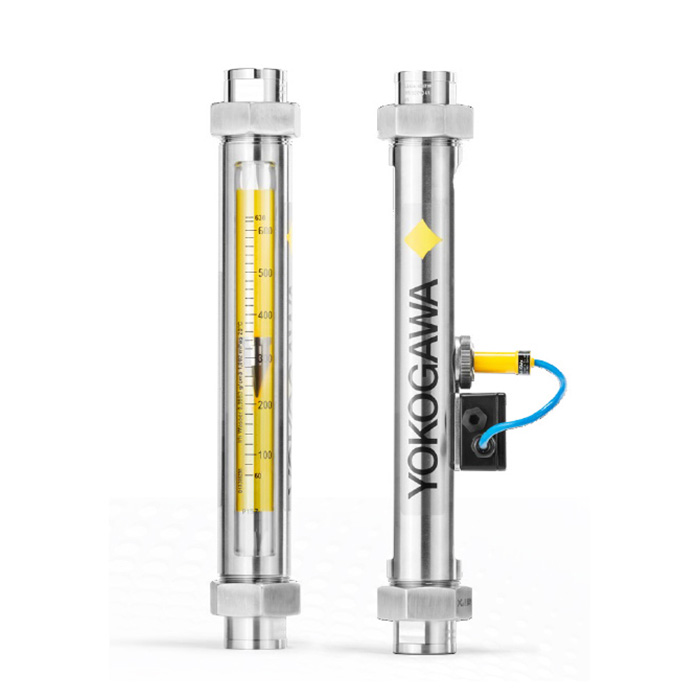

Yokogawa RAGN – Stainless steel rotameter for continuous measurement of liquids and gases

Features:

• Full stainless steel construction
• Rotatable shield
• Designed for aggressive applications
• Easy to install and maintain
• Wide measuring range for gases and liquids
• Low pressure loss
• Easy-to-read scale
• Optional limit switches with junction box
• Suitable for IEC applications

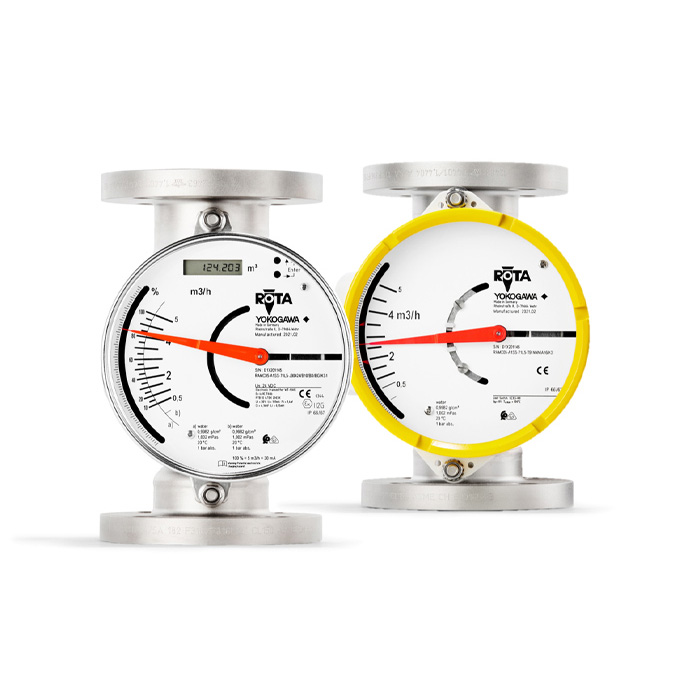

Yokogawa RAMC – Stainless steel or coated rotameter

Features:

• Various process connections, e.g. EN or ASME flanges
• All wetted parts made of stainless steel or PTFE
• Maximum flow: 0.025–130 m³/h water or 0.75–1400 m³/h air (20 °C / 1.013 bar abs
• Protection class: IP66/67
• Local display, no external power supply required
• Microprocessor-controlled transmitter powered by 24 V, 115 V, or 230 V
• Intrinsically safe version (Ex-i): ATEX, IECEx, FM, CSA, NEPSI, PESO, Kosha
• Dust explosion-proof: ATEX, IECEx, NEPSI, PESO, Kosha

Yokogawa VY – Vortex shedding flowmeter for measuring the flow of liquids, gases, and steam

Features:

• 2-wire vortex shedding flowmeter
• Outstanding reliability – dual piezo sensor
• Easy operation
• Detection across the entire pipe diameter
• Flange–meter tube–bluff body available in different materials
• Reducible meter tube
• HART, Foundation Fieldbus, and Modbus communication available

Yokogawa Coriolis – Mass Flowmeter

Direct mass flowmeter for high-accuracy mass flow and density measurements

Features:

• Direct mass flow measurement for liquids (kg/h)
• “Box within a box” design
• Gas entrainment compensation
• Comprehensive hardware diagnostics
