Level transmitters

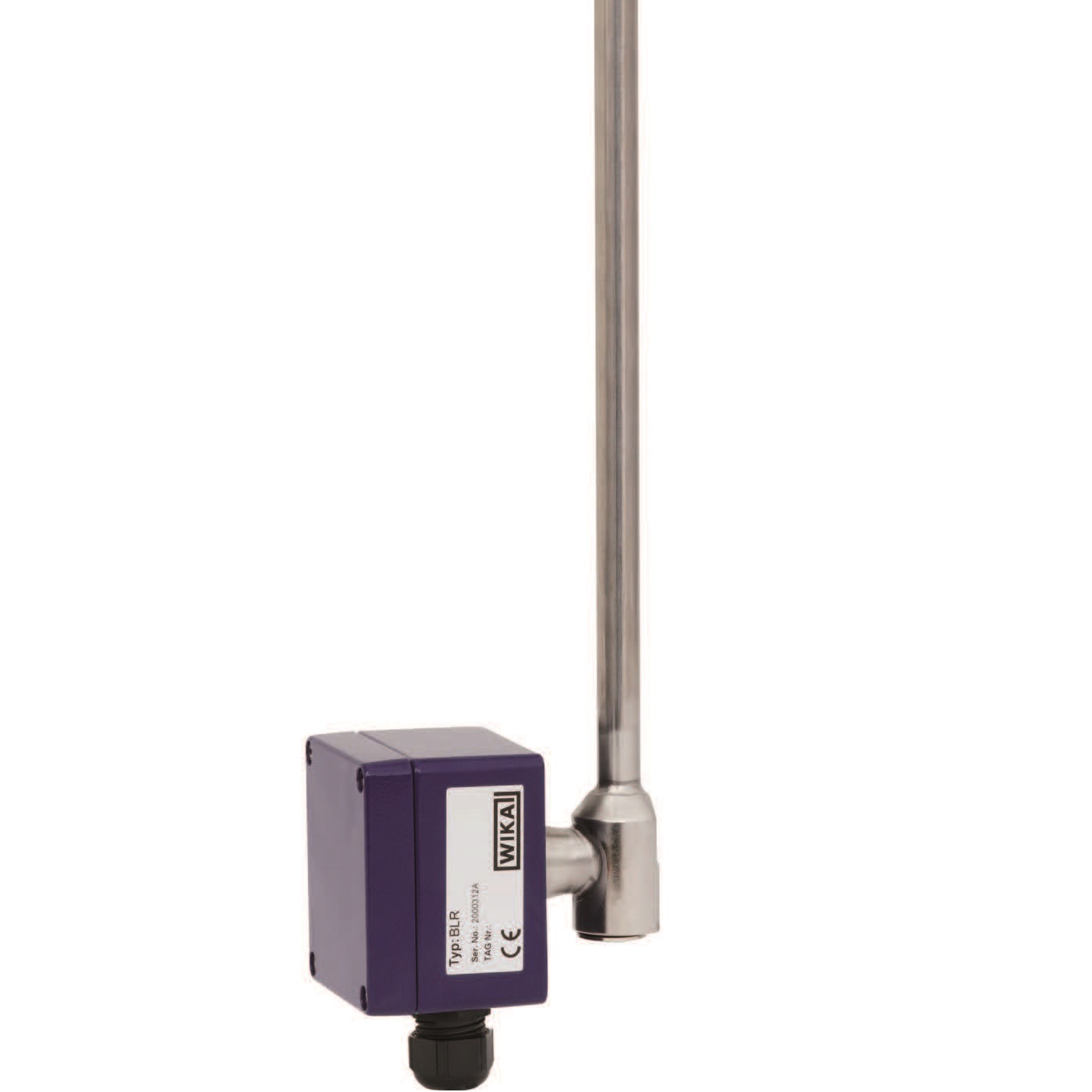

Wika BLR – Reed level transmitter for magnetic level indicators

Features:

• Level transmitter based on reed chain principle
• Maximum operating temperature: –100 to +350 °C
• Optional head-mounted transmitter with 4–20 mA output
• Available with HART, Profibus PA, or Foundation Fieldbus communication
• Also available in explosion-proof version

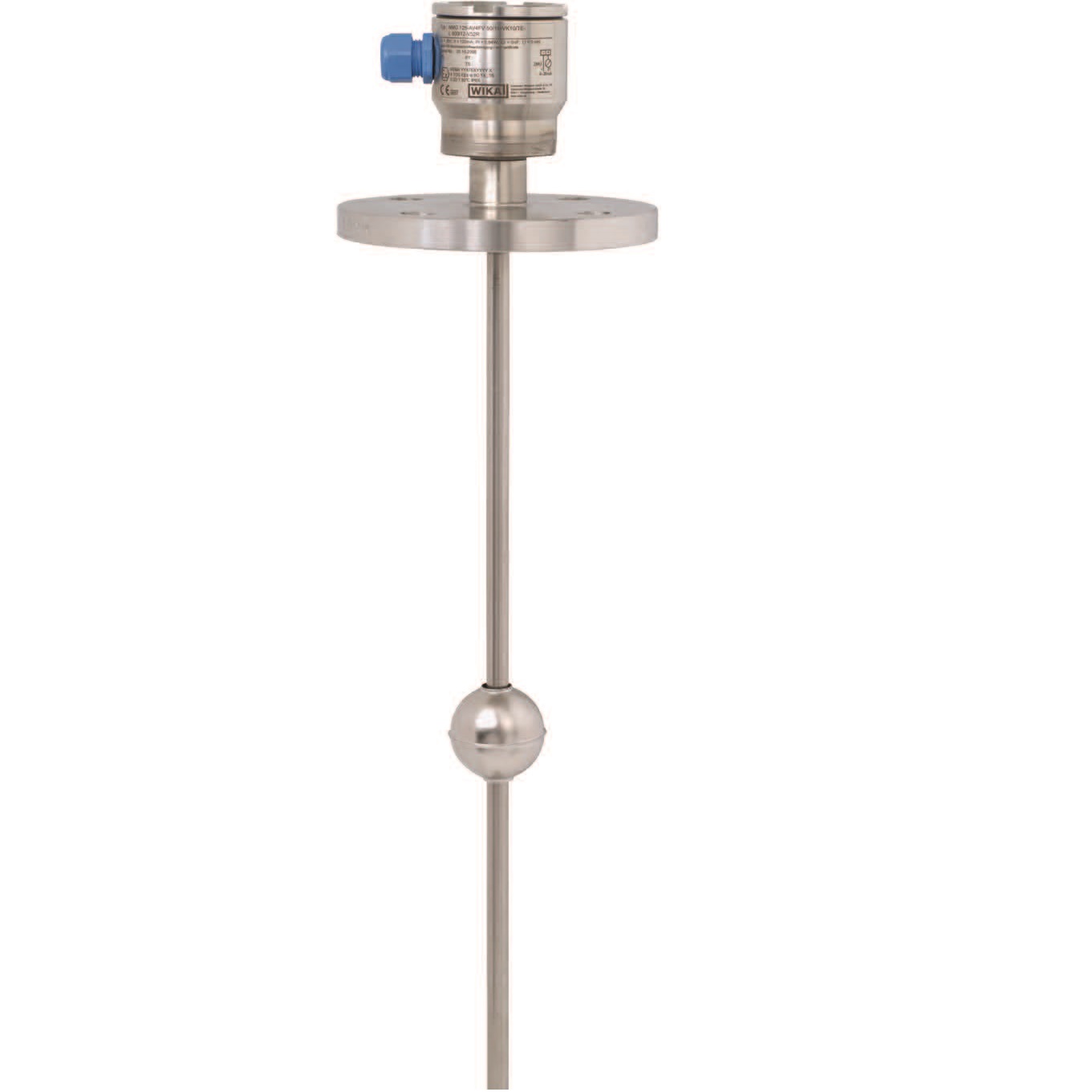

Wika FLR – Reed level transmitter

Features:

• Level transmitter based on reed chain principle
• Maximum operating temperature: –80 to +200 °C
• Maximum operating pressure: –1 to 80 bar
• Operating density: ρ ≥ 400 kg/m³
• Multiple electrical and process connection options available
• Optional head-mounted transmitter with 4–20 mA output
• Available with HART, Profibus PA, or Foundation Fieldbus communication
• Also available in explosion-proof version

Magnetrol JM4 Jupiter – Magnetostrictive Level Transmitter

Features:

• Output: 4–20 mA + HART or Foundation Fieldbus
• Accuracy: ±0.01 mm or ±1.3 mm (whichever is greater)
• Repeatability: ±0.005% or ±0.4 mm (whichever is greater)
• Easy field configuration with advanced diagnostics
• Graphic LCD display with 4-button keypad
• Dual-compartment housing for wiring and electronics, rotatable 310°
• Maximum operating temperature: –196 to +450 °C
• Maximum operating pressure: –1 to +207 bar
• Maximum measuring range: 9.99 m
• Suitable for SIL 1 or SIL 2 applications

Wika FFG - Magnetostrictive level transmitter

High-precision level transmitter based on the magnetostrictive principle

Features:

• High-precision level transmitter based on the magnetostrictive principle
• Maximum operating temperature: -90 to +400 °C
• Maximum operating pressure: -1 to 100 bar
• Operating density: min: 400 kg/m3
• Numerous electrical and technological connection options
• Also available in explosion-proof version

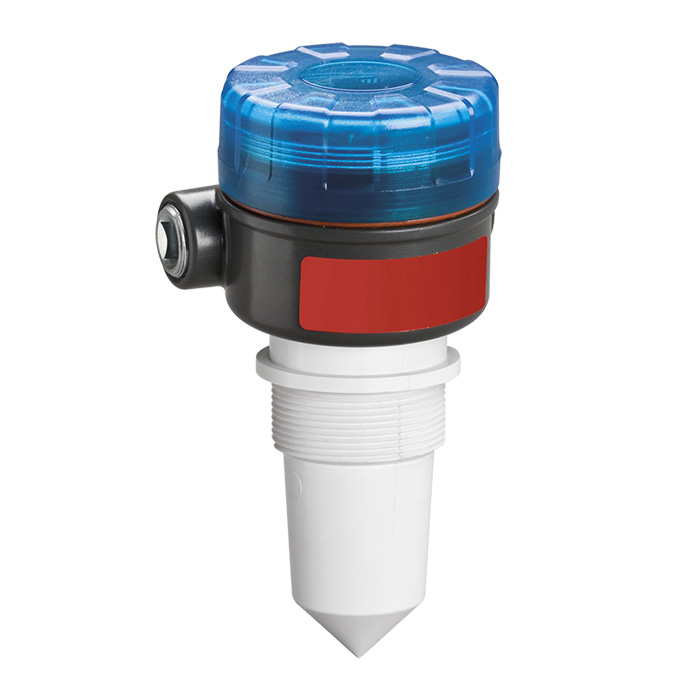

Magnetrol Model R82 – Non contact radar transmitter for level and volume

Features:

• 2-wire, loop-powered, intrinsically safe level transmitter
• Operating frequency: 26 GHz
• Fast and simple configuration
• 2-line x 16-character LCD display with 4-button keypad
• Rotatable microwave beam for optimal performance
• Operating temperature: –40 to +95 °C
• Operating pressure: –1 to +13.8 bar
• Dielectric 1.7–100
• Maximum measuring range: 12 m
• Rapid level change tracking: up to 4.5 m/min

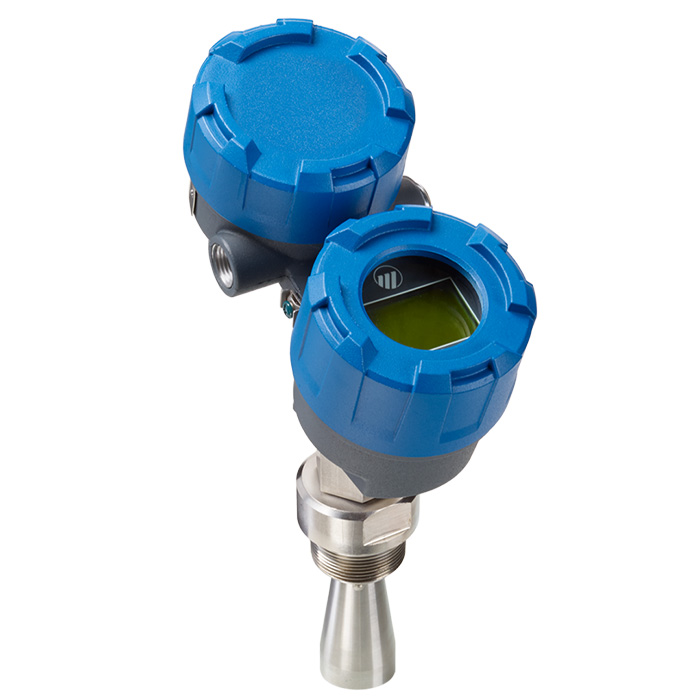

Magnetrol Pulsar R86 – Reflex Radar, Loop-Powered Level Transmitter

For larger tanks, high-temperature, and high-pressure applications.

Features:

• 2-wire, explosion-proof, loop-powered level transmitter
• Operating frequency: 26 GHz
• Handles complex applications: turbulence, foam, agitators, heavy vapors
• 360° rotatable housing, can be serviced during operation
• Graphic LCD display with keypad
• Maximum pressure: 160 bar
• Operating temperature range: –70 to +400 °C
• Maximum measuring range: 40 m
• Minimum dielectric constant: 1.7
• Rapid level change tracking: up to 4.5 m/min

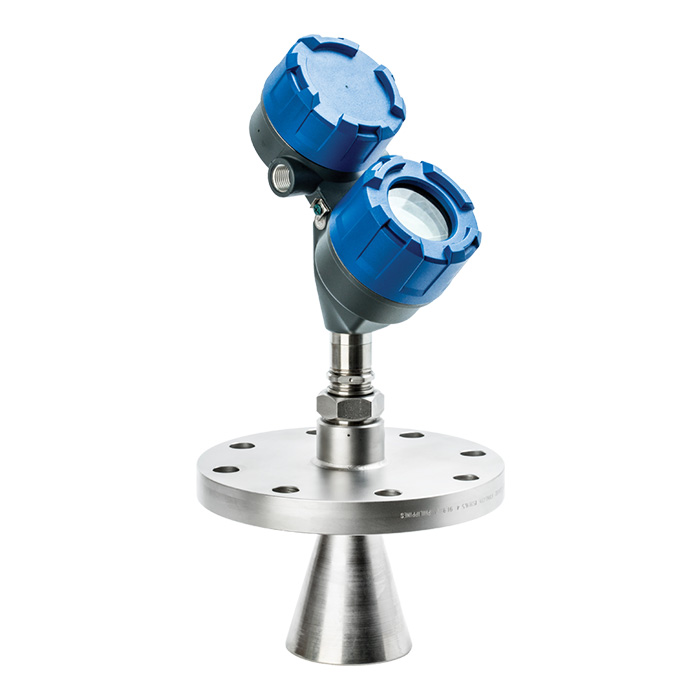

Magnetrol Pulsar R96 – Reflex radar level transmitter, 6 GHz

Designed for larger tanks, suitable for high temperature and high pressure applications.

Features:

• 2-wire, explosion-proof, loop-powered level transmitter
• Operating frequency: 6 GHz
• Suitable for complex applications: turbulence, foam, agitators, heavy vapors
• 360° rotatable housing, serviceable during operation
• Graphic LCD display with keypad
• Available with horn or rod antenna
• Maximum pressure: 51.7 bar
• Operating temperature range: –40 to +200 °C
• Maximum measuring range: 40 m
• Minimum dielectric constant: 1.7 (1.4 in stilling well)

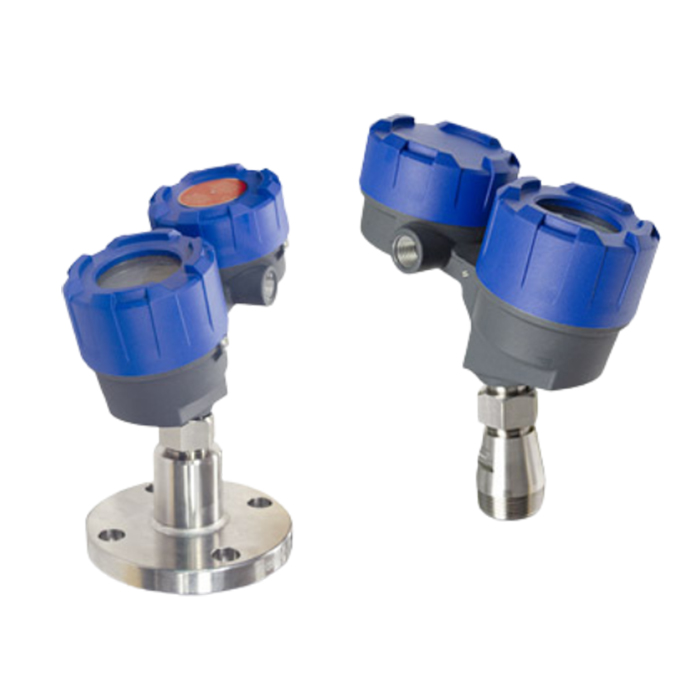

Magnetrol Pulsar R80 – Radar Level Transmitter, 80 GHz

Next-generation radar level transmitter using Frequency Modulated Continuous Wave (FMCW) technology, offering enhanced performance, proactive diagnostics, and various configuration wizards.

Features:

• 2-wire, explosion-proof, loop-powered level transmitter
• 80 GHz operating frequency with Frequency Modulated Continuous Wave (FMCW) technology
• Suitable for complex applications: turbulence, foam, agitators, heavy vapors, etc.
• 360° rotatable housing, serviceable during operation
• Graphic LCD display with keypad
• Compact antenna options with 4…13° beam angles
• Maximum pressure: 70 bar
• Operating temperature range: –40 to +200 °C
• Maximum measuring range: 30 m
• Minimum dielectric constant: 1.7 (1.4 in stilling well)
• Suitable for SIL 1 and SIL 2 applications

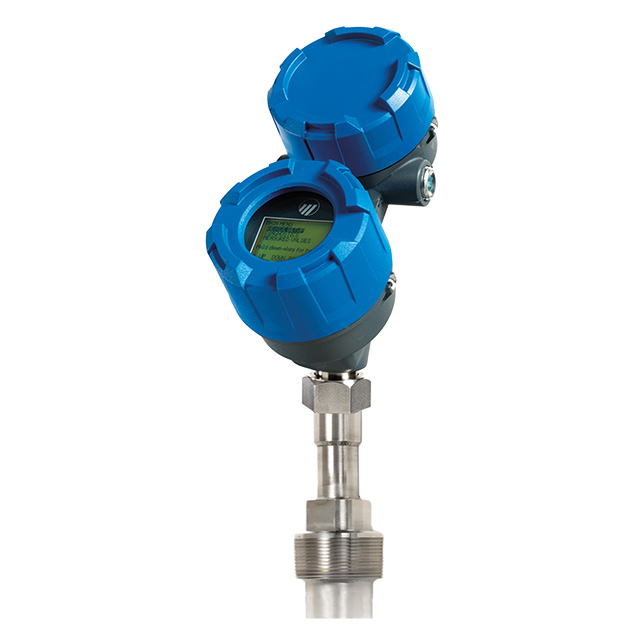

Magnetrol 706 Eclipse – Guided Wave Radar Level Transmitter

Features:

• Measurement unaffected by changing process conditions such as pressure, temperature, density, pH, or viscosity
• Simple field configuration
• Programmable 20-point table for volumetric output
• 360° rotatable housing, serviceable during operation
• Graphic LCD display with 4-button keypad
• Probe designs rated up to 425 °C / 431 bar
• Saturated steam applications up to 155 bar and 400 °C
• Low-temperature applications down to –196 °C
• Integrated or remotely mounted electronics available

Magnetrol Modulevel E4 – 2-Wire, Intrinsically Safe, Displacer Level Transmitter

Features:

• 2-wire, intrinsically safe, loop-powered level transmitter
• Suitable for continuous level, interface, and density measurement
• Graphic LCD display with 4-button keypad
• Easy field configuration
• 360° rotatable housing, serviceable during operation
• Special options, materials, and custom configurations available
• Applicable in SIL 1 or SIL 2 loops
• 4–20 mA output with HART or Foundation Fieldbus communication

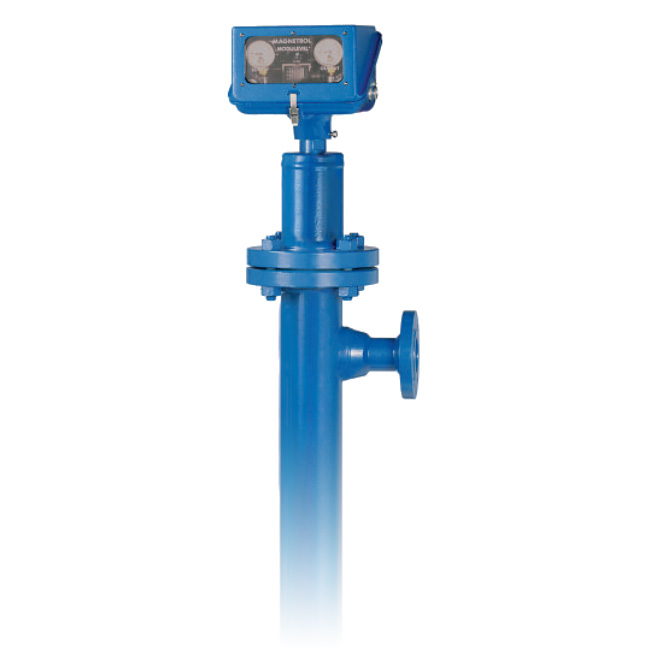

Magnetrol Pneumatic Modulevel P60 – Displacer Pneumatic Level Transmitter

Features:

• Operating temperature: -100 to +370 °C
• Operating pressure: up to 294 bar
• Stable output signal unaffected by surface turbulence, protects control valves from oscillation
• Controller head can be mounted without depressurization
• Accurate output signal over a wide density range
• Simple field calibration without changing liquid level
• 360° rotatable controller head simplifies pneumatic piping
• Auxiliary air control for fast response
• Built-in visual indicator (independent of supply air)

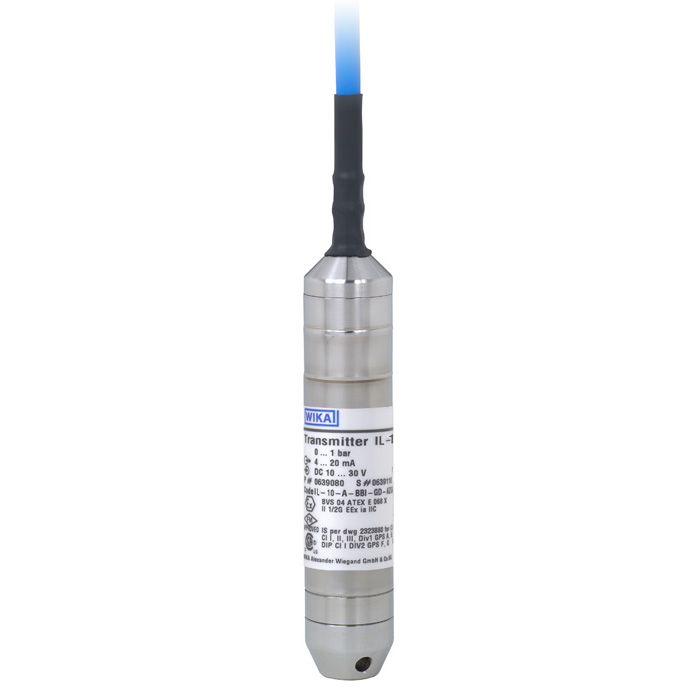

Wika IL-10 – Submersible pressure transmitter, intrinsically safe, suitable for hazardous environments

Applications:

• Level measurement in hazardous environments
• Monitoring in refineries, distilleries, wastewater and pumping stations
• Supervision of reservoirs, settling tanks, and storage tanks
• Intrinsically safe protection

Features:

• Explosion protection: EEx ia I/IIC T6
• Optional Hastelloy^® sensor and FEP cable for high resistance
• Permanent IP68 protection (up to 300 m water column)
• Measuring range: 0 to 100 mbar and 0 to 25 bar

Wika LH-10 – Submersible Pressure Transmitter, High-Accuracy Design

Applications:

• Level measurement in rivers, lakes, tanks, and storage systems
• Monitoring of wastewater and pumping stations
• Supervision of reservoirs and settling tanks

Features:

• High accuracy and reliability
• Optional integrated temperature sensor
• Optional Hastelloy^® sensor and FEP cable for enhanced resistance
• Permanent IP68 protection (up to 300 m water column)
• Accuracy: 0.25%
• Measuring range: 0 to 25 bar

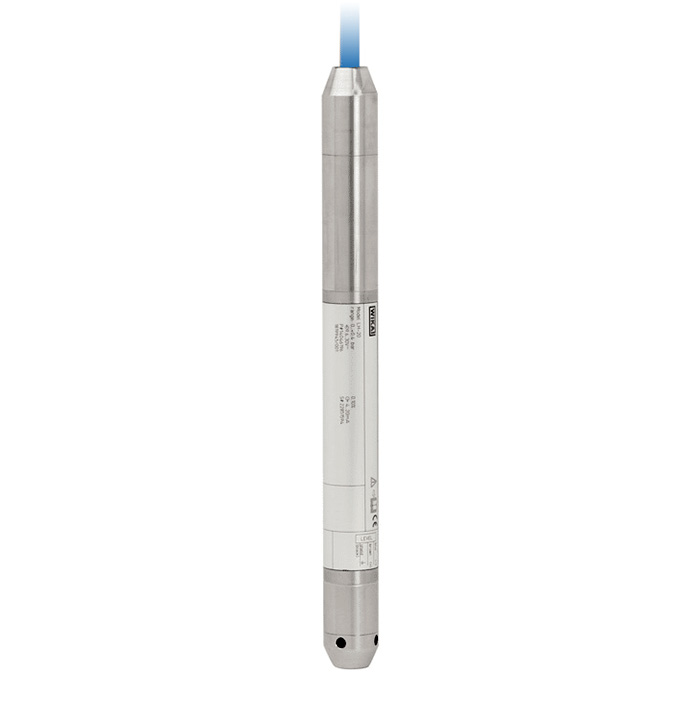

Wika LH-20 – Submersible pressure transmitter, high-accuracy design for deep wells and groundwater monitoring

Applications:

• Deep well drilling and groundwater monitoring
• Level measurement in open waters
• Supervision of reservoirs and settling tanks
• Intrinsically safe protection

Features:

• Slim design with adjustable span
• Explosion protection: EEx ia I/IIC T6
• Resistant to harsh environmental conditions
• Measuring range: 0 to 25 bar

Wika LS-10 – Submersible Pressure Transmitter for Level Measurement in Rivers, Lakes, Tanks and Storage Systems

Applications:

• Level measurement in rivers, lakes, tanks, and storage systems
• Monitoring of wastewater and pumping stations
• Supervision of reservoirs

Features:

• Robust design
• Cost-effective
• Reliable
• Measuring range: 0 to 10 bar
