Shut-off / throttle valves
Shut-off / throttle valves
Globe valves play a key role in ensuring safe and efficient control of industrial processes, particularly in the oil and gas industry, but they are also used in many other industrial sectors.
Our range includes various types and sizes that comply with EN 12516 standards.
We also offer solutions for special applications such as handling hazardous materials, low-temperature or high-pressure operations. Whether for standard or demanding applications, our products ensure reliable and efficient process performance.
Choose from our Globe Valves!

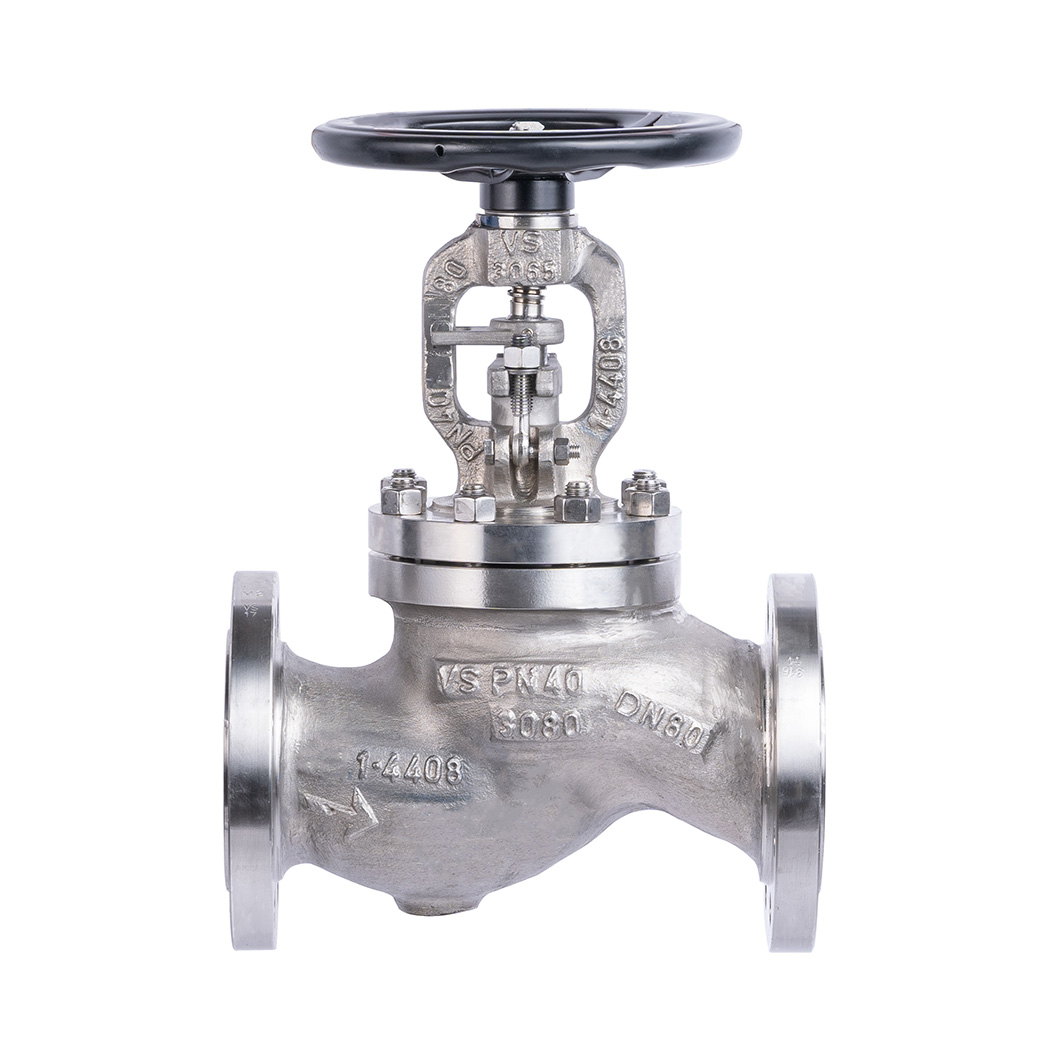

Globe valve with bolted bonnet
EN 12516 design. For oil and gas industry as well as other industrial applications.
- Type: 1401, 1430, 1560, 1570, 1580
- Size: DN 15 to DN 600
- Class: PN 10/16 to PN 16
Globe valve with 90° angle bolted bonnet
EN 12516 design. For oil and gas industry as well as other industrial applications. 90° design for right-angle connections.
- Type: 1410, 1440, 1560A, 1570A
- Size: DN 15 to DN 600
- Class: PN 10/16 to PN 100

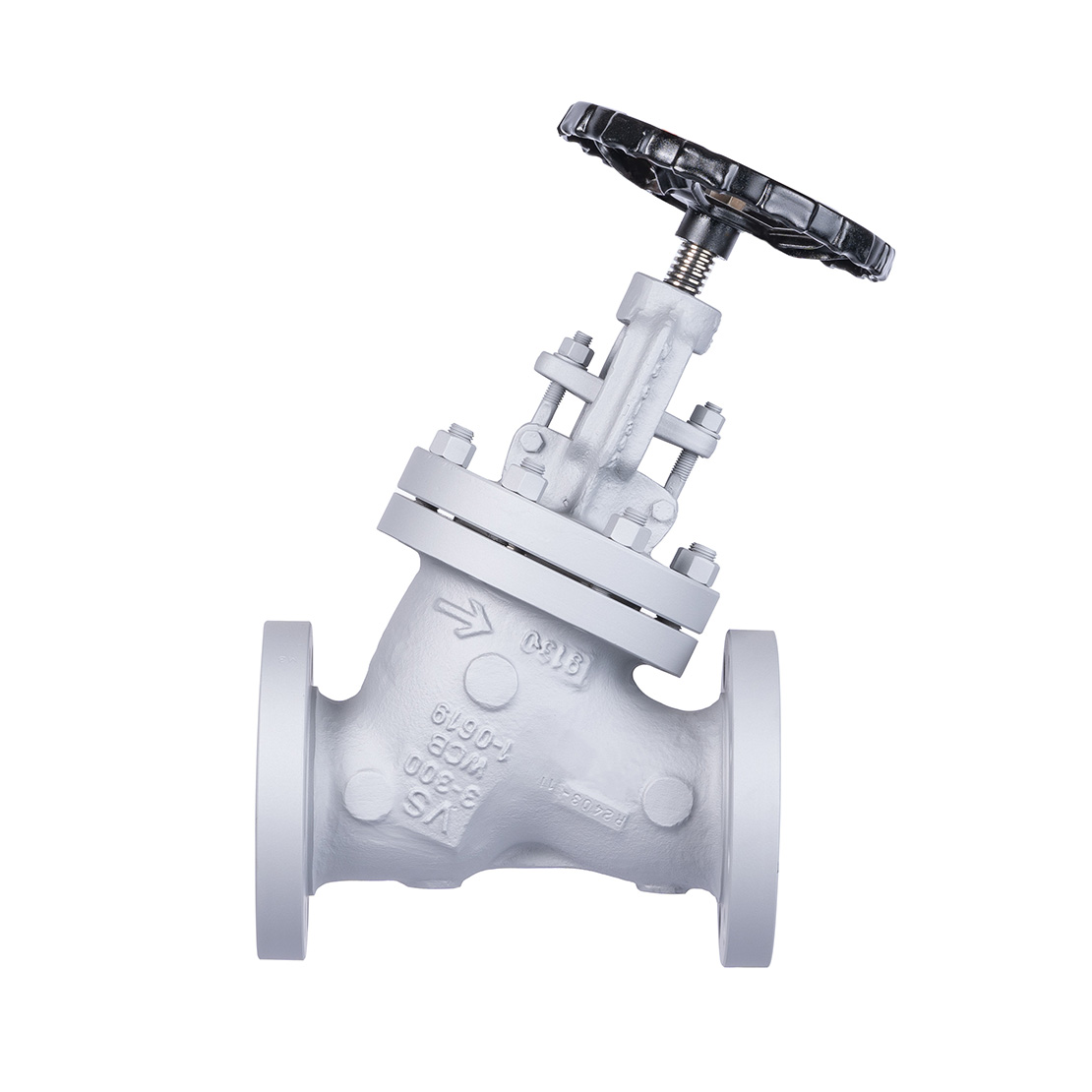

Globe valve with Y-pattern bolted bonnet
EN 12516 design. For oil and gas industry as well as other industrial applications. Y-pattern design to reduce turbulence.
- Type: 1403, 1432, 1560Y, 1570Y
- Size: DN 15 to DN 600
- Class: PN 10 to PN 100
Globe valves with bellows seal
EN 12516 design. Low emission sealing, especially for hazardous and toxic substances.
- Types: 1800, 1670, 1560SO, 1570SO
- Size: DN 15 to DN 600
- Class: PN 10 to PN 100

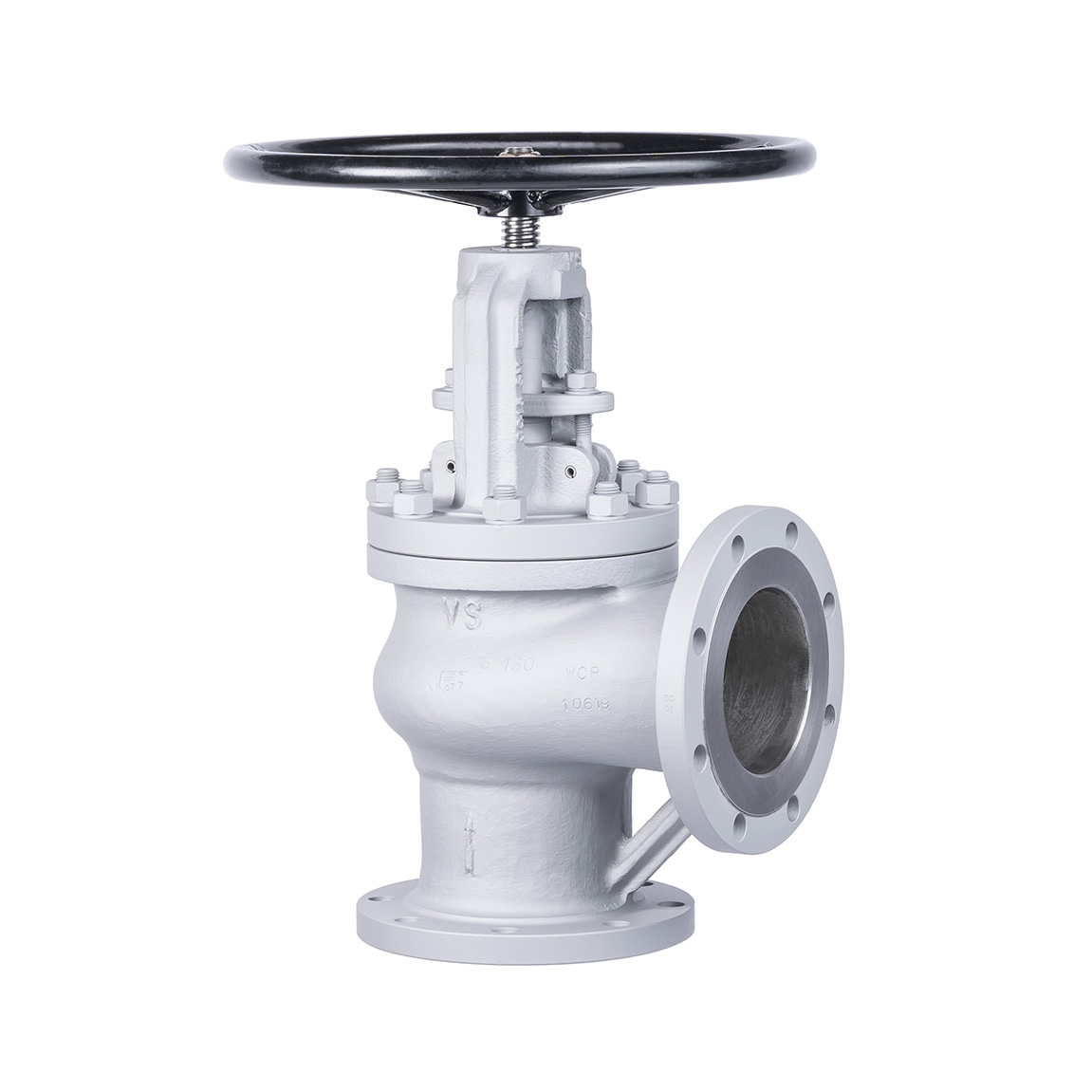

90° globe valves with bellows seal
EN 12516 design. Low emission sealing, especially for hazardous and toxic substances. 90° design for operational right-angle connections.
- Types: 1810, 1680, 1560ASO, 1570ASO
- Size: DN 15 to DN 600
- Class: PN 10 to PN 100
Y-pattern globe valves with bellows seal
EN 12516 design. Low emission sealing, especially for hazardous and toxic substances. Y-pattern design to reduce turbulence.
- Types: 1432SO, 1560YSO, 1570YSO
- Size: DN 50 to DN 600
- Class: PN 40 to PN 100

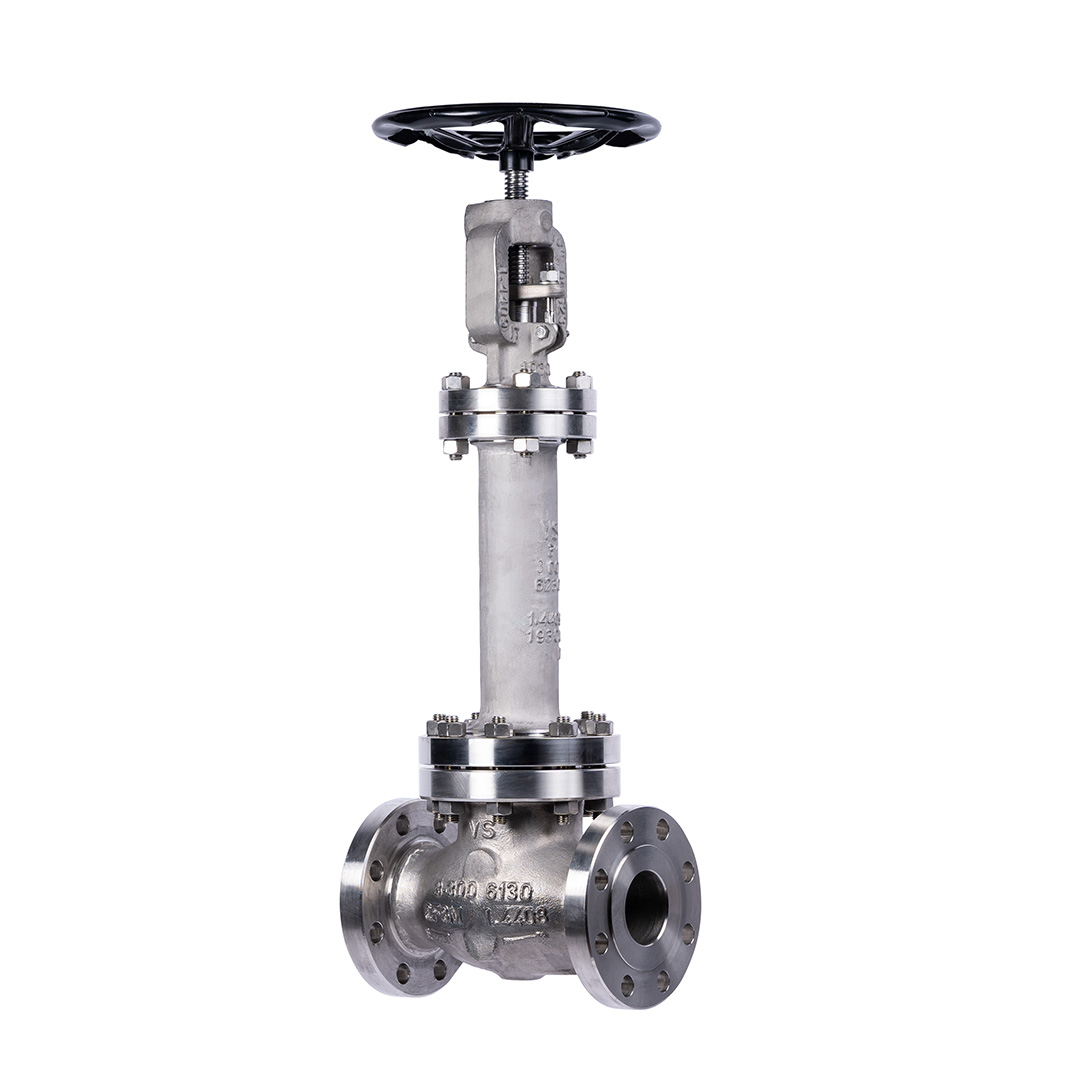

Cryogenic globe valves
EN 12516 design. For low-temperature applications down to -196 °C. Bonnet extension according to ISO 28921 and BS6364 standards.
- Types: 1430EB, 1560EB, 1570EB
- Size: DN 15 to DN 600
- Class: PN 25 to PN 100

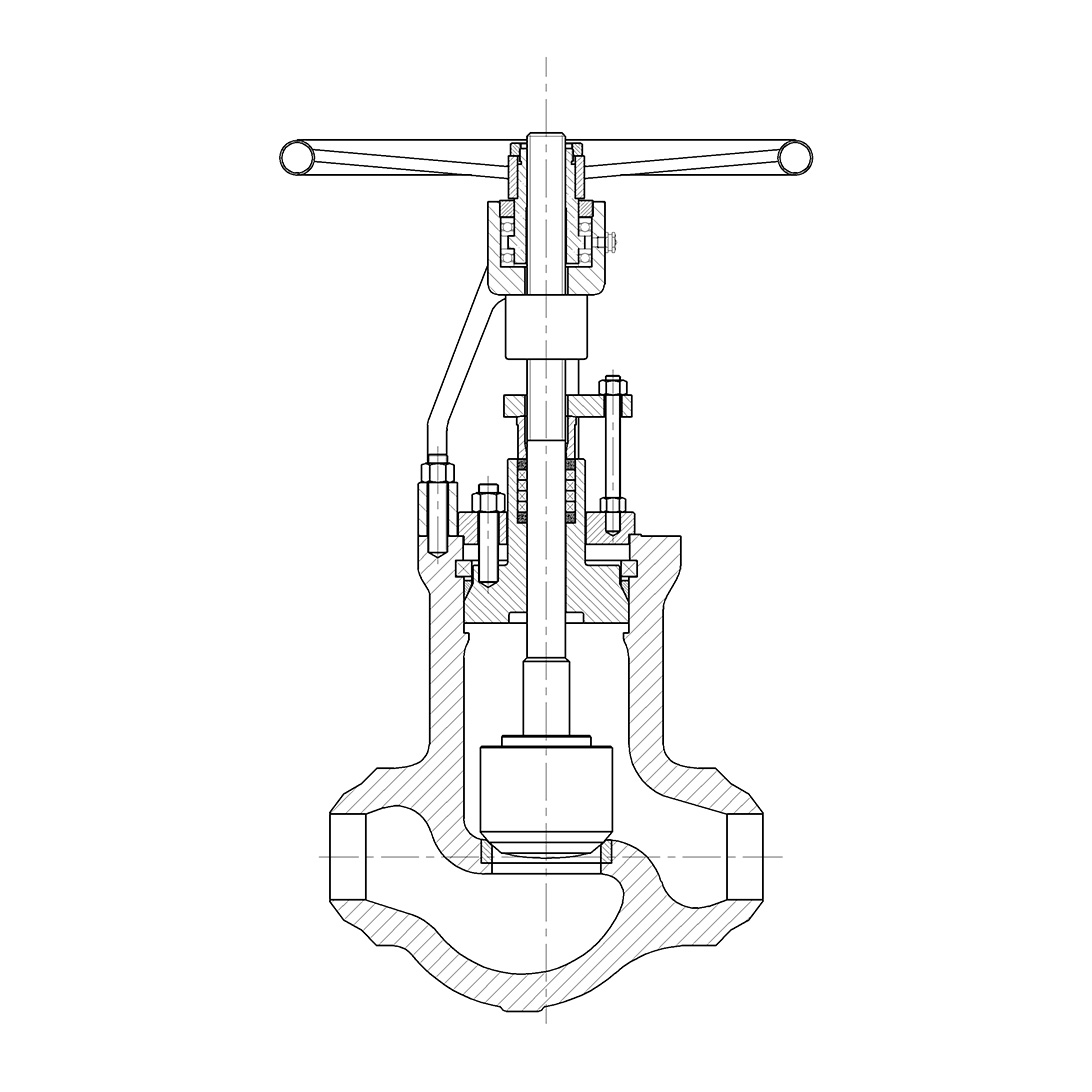

Globe valves with pressure seal bonnet
EN 12516 design. Suitable for high-pressure and high-temperature applications in power plants. Available in both short and long design.
- Types: 1810, 1680, 1560ASO, 1570ASO
- Size: DN 15 to DN 600
- Class: PN 10 to PN 100

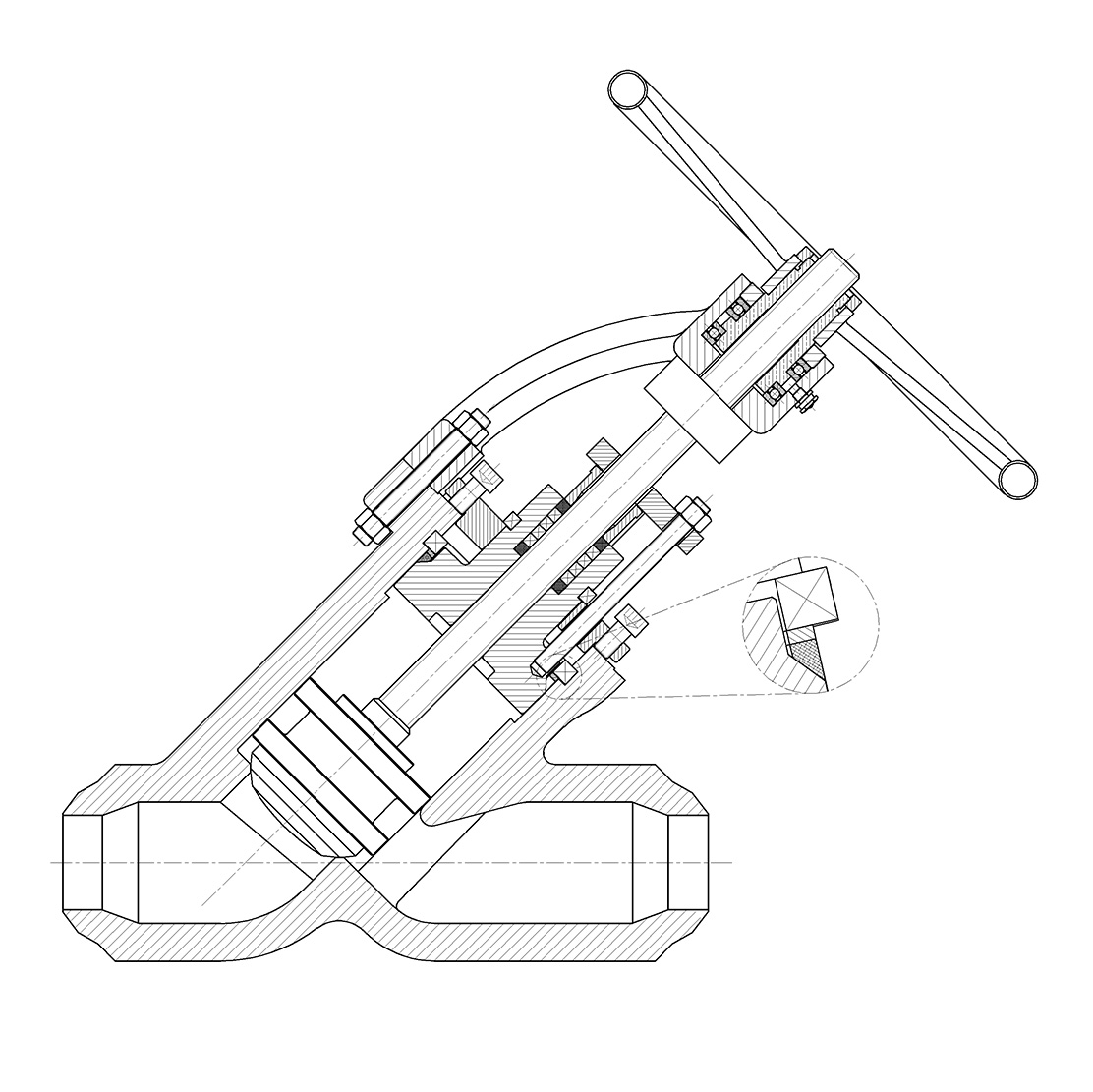

Y-pattern globe valves with pressure seal bonnet
EN 12516 design. Suitable for high-pressure and high-temperature applications in power plants. Y-pattern design to reduce turbulence. Available in both short and long design.
- Types: P182, P183, P184, P185, P186
- Size: DN 50 to DN 600
- Class: PN 100 to PN 420
Get in touch with us!
With 35 years of accumulated engineering expertise and extensive experience gained from leading players in Hungarian industry, we look forward to hearing from you.
