Industrial displays
Displays
Displays are an important part of process control systems. They are used for presenting and visualizing information, helping operators and users interpret the system’s status.
Displays can come in different types, such as LED, LCD, or digital displays, which allow process parameters, statuses, or values to be shown.
Choose from our displays!

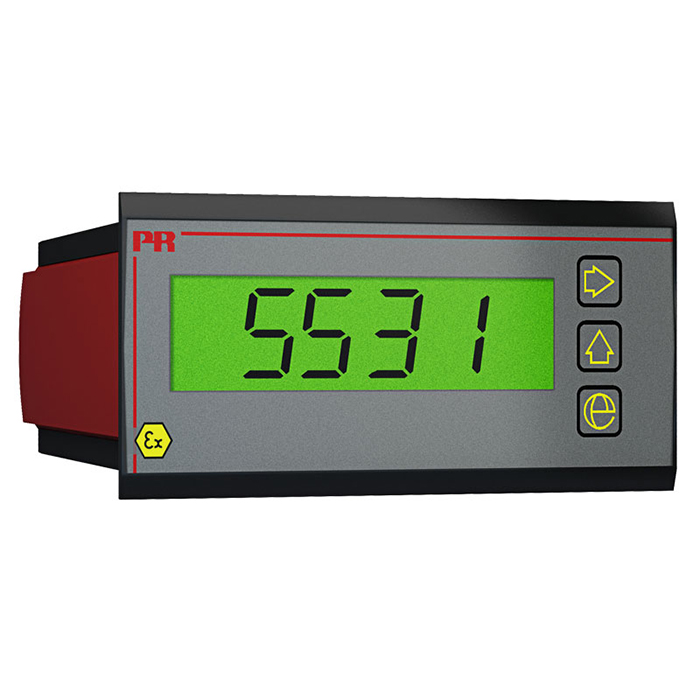

PR 5531B – EX Zone 1 Field Display, Loop-powered
Features:
- Dimensions (H x W x D): 48 x 96 x 120 mm
- Cut-out size: 44.5 x 91.5 mm
- Protection: IP 65, front panel
- Display: 4-digit LCD, 16 mm character height
Input:
- Current measurement: 3.6–23 mA
- Power supply: loop-powered from input
- ATEX: II 2 G Ex ia IIC

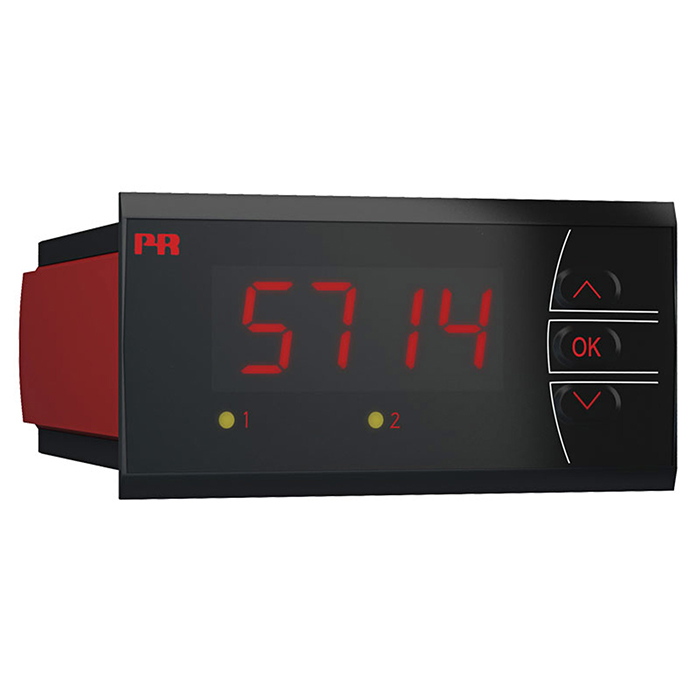

PR 5714A – Programmable panel meter (LED), current output + 2 relays
Features:
- Dimensions (H x W x D): 48 x 96 x 120 mm
- Cut-out size: 44.5 x 91.5 mm
- Protection: IP 65, front panel
- Display: 4-digit LCD, 13.8 mm character height
Input:
- Temperature measurement: RTD / TC
- Resistance: potentiometer, Linear R
- Current measurement: 0–20 mA
- Voltage measurement: 0–12 V DC
Output:
- Current: 0–20 mA
- Relay output: 2 programmable dry contacts, 500 VA AC
- Power supply: 230 V AC // 24 V DC

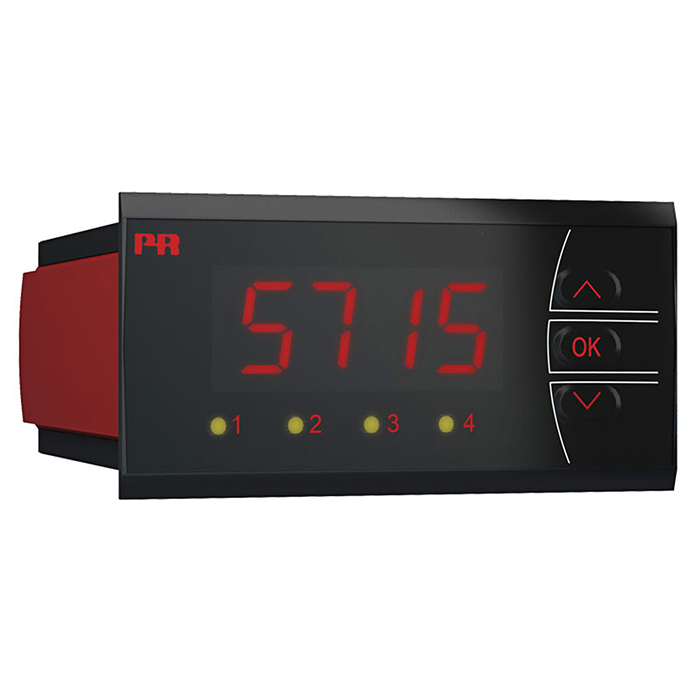

PR 5715 – Programmable LED indicator + 4 relays
Features:
- Dimensions (H x W x D): 48 x 96 x 120 mm
- Cut-out size: 44.5 x 91.5 mm
- Protection: IP 65, front panel
- Display: 4-digit LCD, 13.8 mm character height
Input:
- Temperature measurement: RTD / TC
- Resistance: Potentiometer, Linear R
- Current measurement: 0–20 mA
- Voltage measurement: 0–12 V DC
Output:
- Current: 0–20 mA
- Relay output: 4 programmable dry contacts, 500 VA AC
- Power supply: 230 V AC / 24 V DC

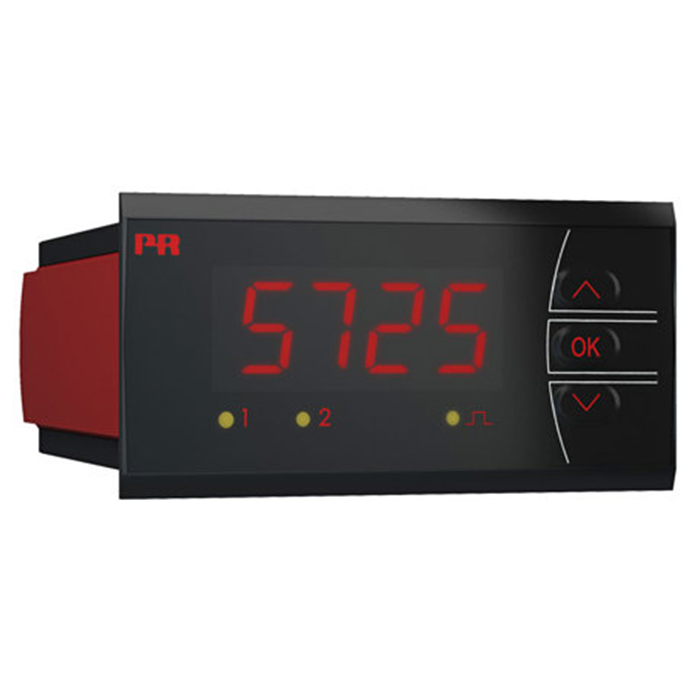

PR 5725A – Programmable frequency indicator (LED) – frequency
Features:
- Dimensions (H x W x D): 48 x 96 x 120 mm
- Cut-out size: 44.5 x 91.5 mm
- Protection: IP 65, front panel
- Display: 4-digit LCD, 13.8 mm character height
Input:
- Measuring range: 0.001–50 kHz
- NAMUR
- Tacho
- NPN / PNP
- TTL
- S0
- Custom voltage
- Custom current
Output:
- Current: 0–20 mA
- Relay output: 4 programmable dry contacts, 500 VA AC
- Power supply: 230 V AC / 24 V DC

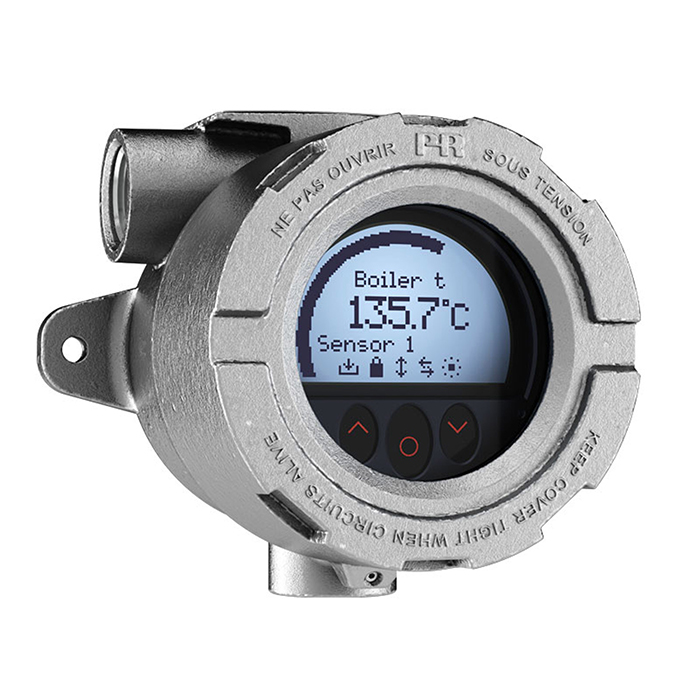

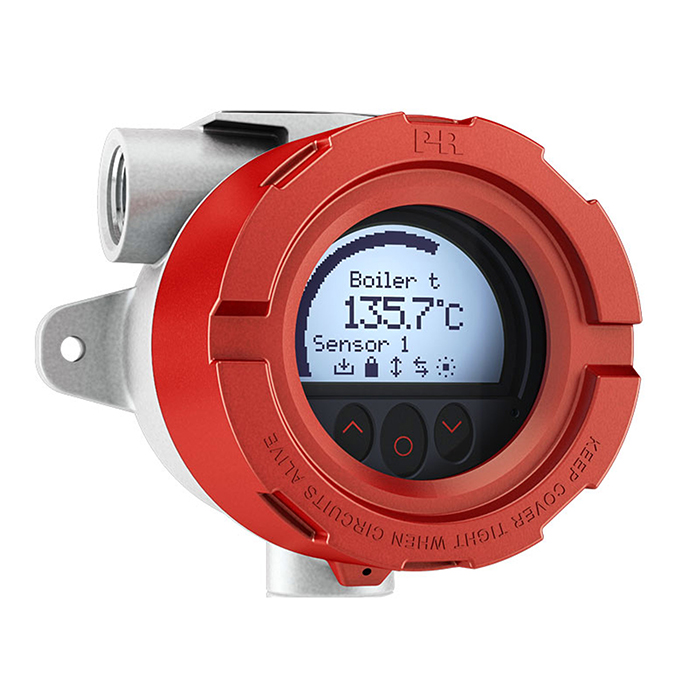

PR 7501 – Ex d, loop-powered, field temperature transmitter and display, HART
Features:
- RTD, TC, ohm, bipolar mV input and analog output
- Local display (LOI) with 3 optical buttons
- Selectable red or white backlight
- Ex d housing in aluminum or 316 SS
- HART 7, HART 5
