Plug valves
Plug valves
Plug valves are designed to regulate the flow of liquids or gases in pipelines. The conical shut-off element inside the valve body controls the amount of medium passing through.
The Xomox Tuflin plug valve is built for long service life. It can be used even with liquids containing solid particles or those prone to crystallization. It is equally suitable for on/off and control functions.

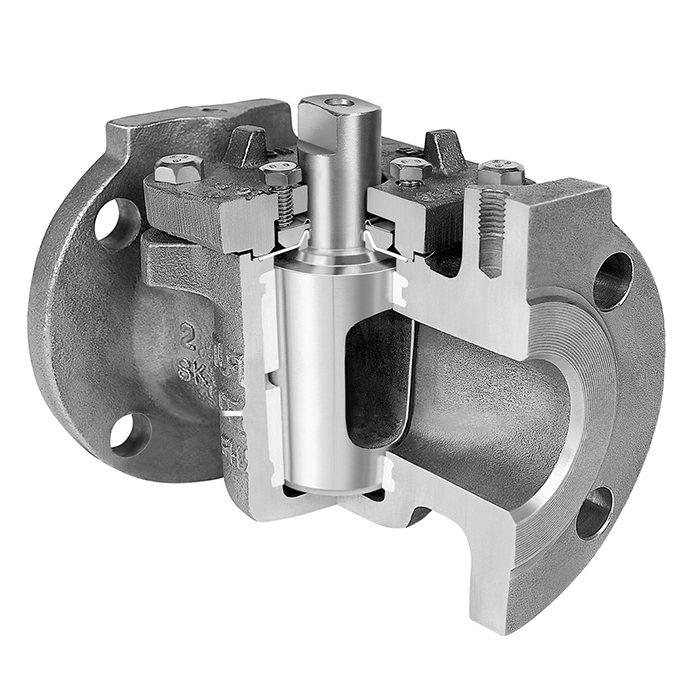

Xomox Tuflin plug valve
Excellent for both on/off and control functions
Advantages
- No lubrication required, zero maintenance cost
- Suitable for both on/off and control functions
- Can be used with liquids containing solid particles or prone to crystallization
- Cavity-free design prevents contamination of the process medium
- Bubble-tight shut-off for liquids and gases (Leakage < 10⁻⁶ mbar l/sec)
- Long service life, high reliability
- Cost-effective lifecycle across various applications
Specifications
- Size: flanged design: DN15–DN400 / NPS 1/2 – 16
- Pressure rating: PN 10/40/63/100; ANSI Class 150, 300, 600
- Body materials: cast steel (EN-JS1049), carbon steel (1.0619), stainless steel (1.4408, 1.4552, 1.4309), other materials on request
- Sleeve material: pure Teflon
- Special versions: FireSafe design, oil- and grease-free assembly, leakage detection
