Butterfly valves regulate the flow of liquids or gases in pipelines. The closing element is a disc mounted on a rotating shaft, which turns during opening or closing to control the flow of the medium.
Center Line, FKX900L, and Xomox butterfly valves operate across a wide temperature and pressure range, even under vacuum. They are designed for frequent on/off operation and long service life.
Choose from our butterfly valves!

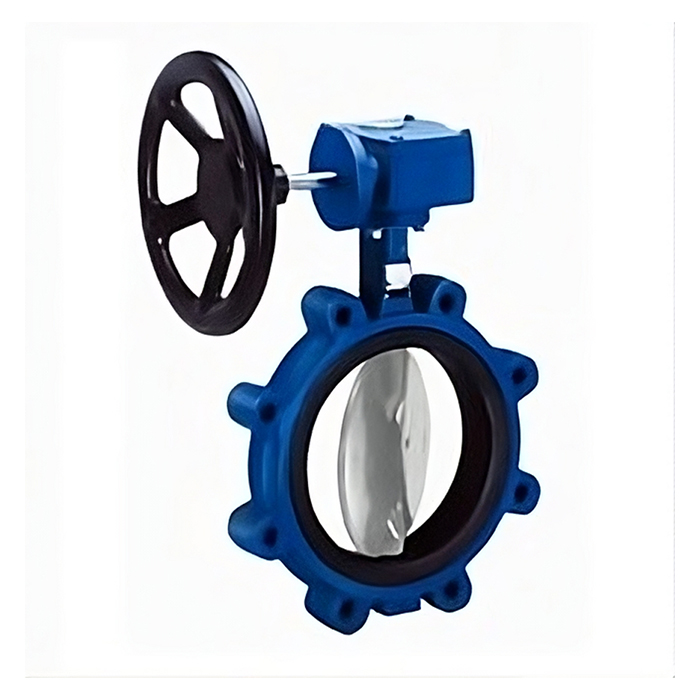

Center Line RS butterfly valve – Rubber-seated concentric butterfly valve
Features:
- Concentric design
- Soft seat
- Replaceable seat ring (metal carrier)
- Durable tight shut-off
- Optimal performance even under vacuum
- Standard top flange for actuator mounting
- Material options available for almost any medium
- Short face-to-face dimension
- Maintenance-free design
- Blow-out proof shaft
- Actuators can be mounted directly without intermediate elements
- Size: DN 40–1400
- Pressure class: PN 10–16, ANSI 150
- Temperature: –10 to +150 °C
- Face-to-face dimension: short
- Body design: Wafer, Lug, flanged
- Body material: carbon steel
- Disc material: stainless steel, nickel-plated carbon steel, aluminum, bronze, Duplex, Hastelloy
- Seat ring material: NBR, HNBR, EPDM, FPM, CSM

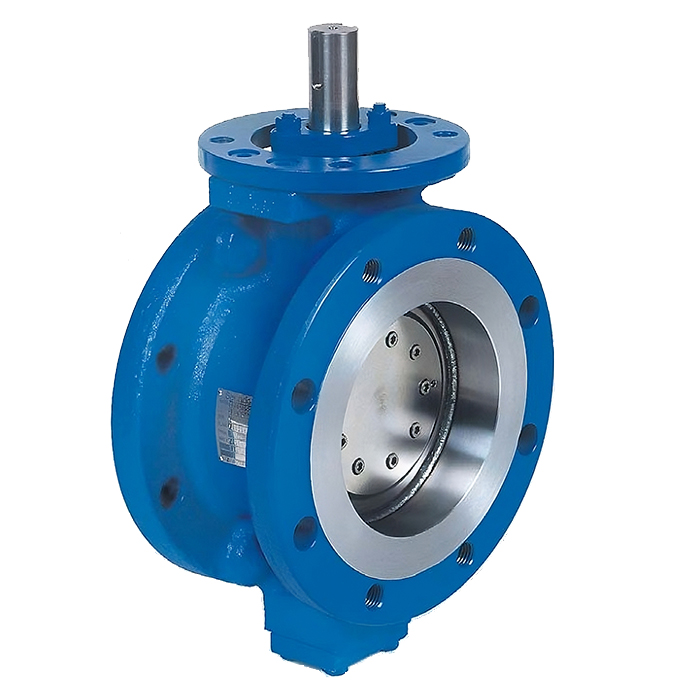

Crane FKX9000 butterfly valve – Triple offset butterfly valve
Applications:
- Extreme temperatures
- Frequent on/off operation
- Steam service isolation
Features:
- Size: ANSI 3″–24″ / DN 80–600
- Pressure rating: 150–600 lbs / PN 10–100
- Body materials: carbon steel, stainless steel, high-alloy steels
- Design: LUG, double flanged (short and long face-to-face)
- Temperature range: –196 to +550 °C
- Fire tested: API 607 Rev. 4
Xomox 800-ISO HPBV butterfly valve – HPBV double offset butterfly valve
Features:
- Available in ANSI and DIN design
- Various pressure ratings
- PTFE standard seat
- Optional fire-safe design and metal seat
- Exceptional tight shut-off in both directions, under high pressure and vacuum
- Long service life
- Standard face-to-face dimensions
- Easy maintenance
- Lightweight
