Flow Switches
Flow switches detect the presence or absence of flow in a system. They allow monitoring and control of liquid or gas flow across various industrial processes.
Magnetrol flow switches combine accurate operation with easy on-site setup and calibration. They operate reliably across wide temperature and pressure ranges and are suitable for diverse applications.
Choose from our flow switches!

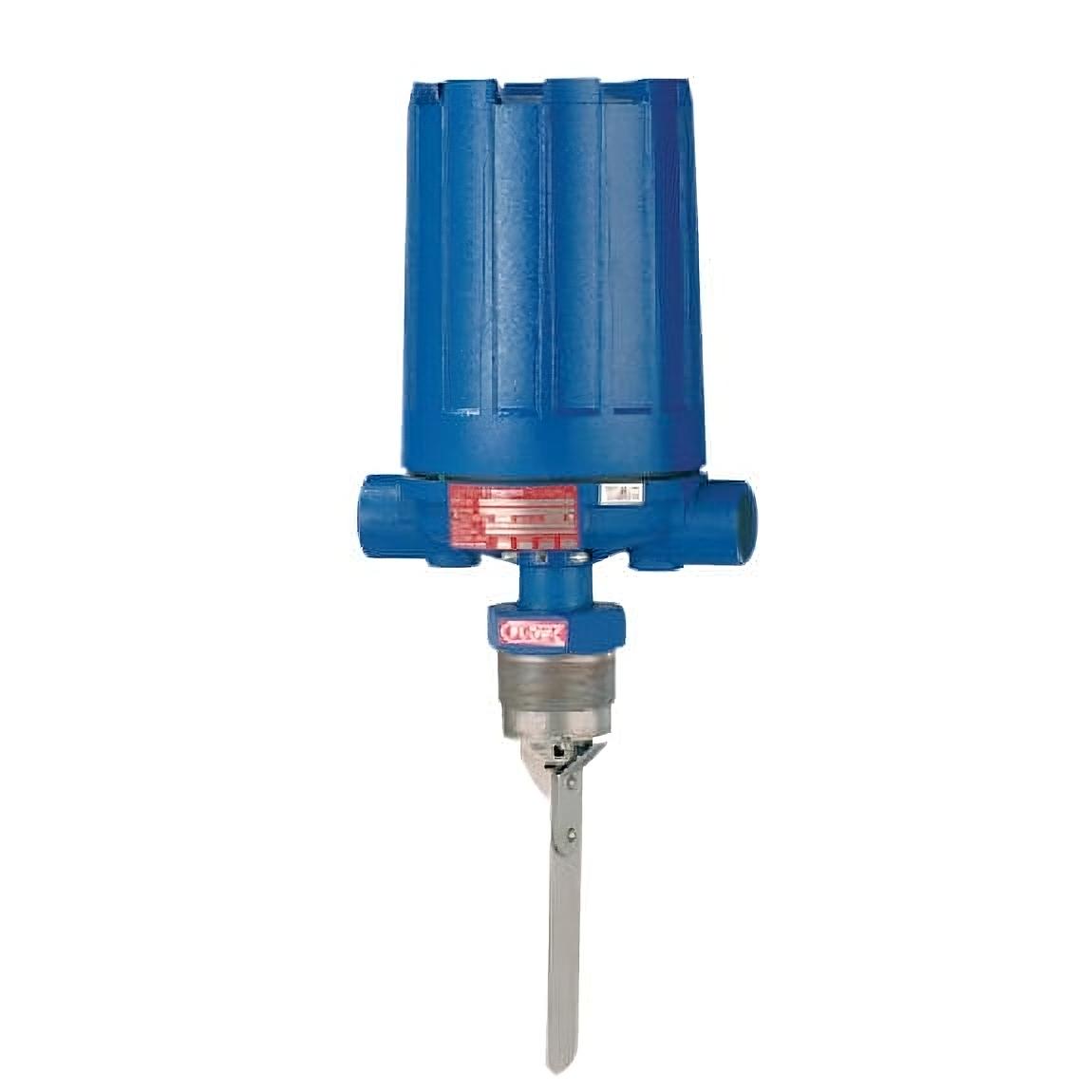

Magnetrol F10 – Vane-actuated mechanical flow switch
Features:
- Switches on increasing or decreasing flow
- Special sensing elements available for non-standard or high-flow applications
- For installation in horizontal pipes
- Standard corrosion protection
- Easy field adjustment
- Low pressure drop
- Maximum operating temperature: +230 °C
- Maximum operating pressure: 69 bar
- Standard flow vanes for 2″ thru 10″ flow lines

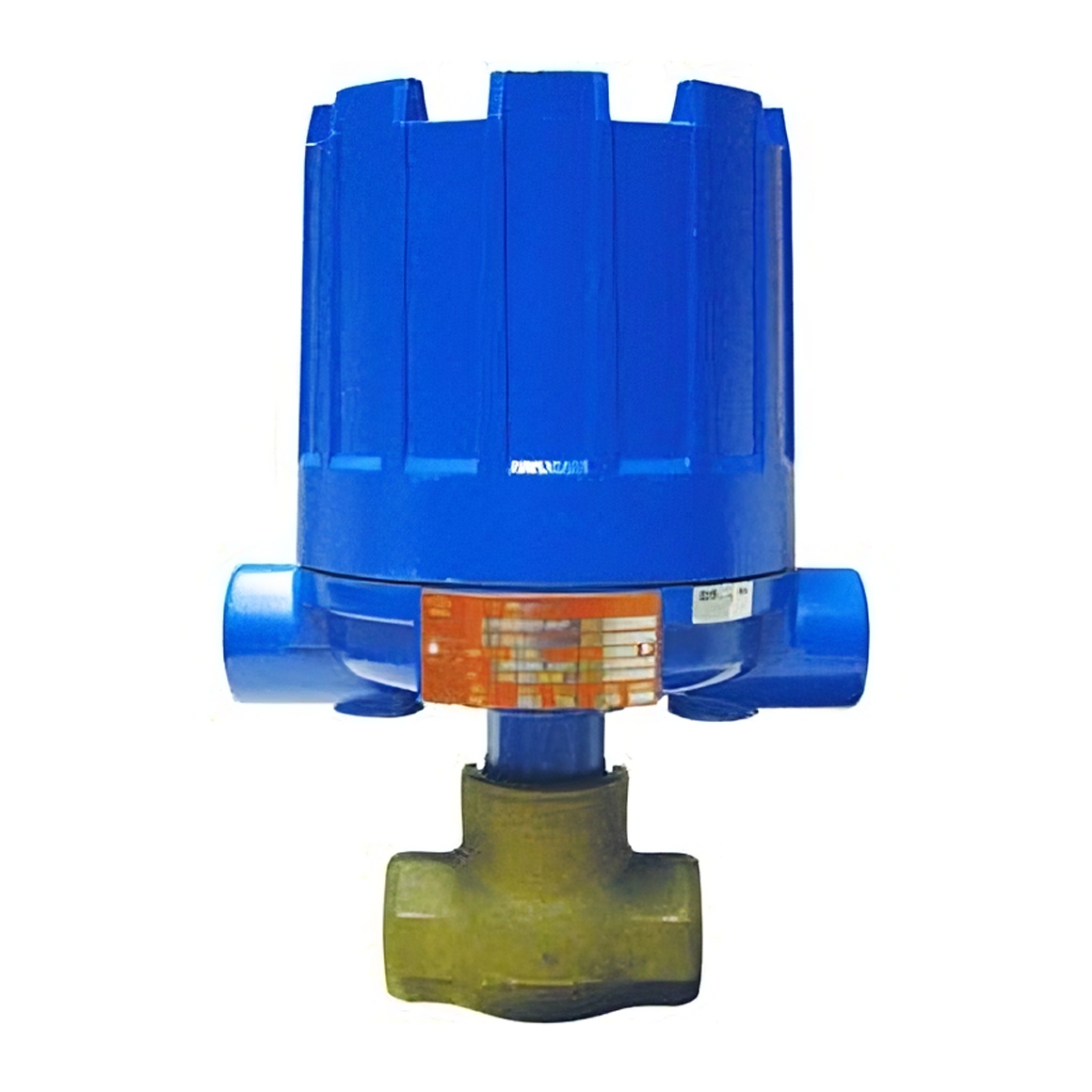

Magnetrol F50 – Disc-actuated flow switch
Features:
- Switches on increasing or decreasing flow
- Special sensing elements for non-standard or high-flow applications
- Suitable for installation in horizontal pipes
- Standard corrosion protection
- No calibration required
- Available in bronze or stainless steel construction
- Maximum operating temperature: +400 °C
- Maximum operating pressure: 79.3 bar
- Bodies for flow lines from 3/4″ to 2″
Magnetrol Thermatel TD1 - TD2 flow switch – Thermal dispersion level/flow switch
Features:
- Easy field calibration (optional factory pre-calibration available)
- Detects variable flow or “flow/no-flow” conditions
- Excellent low-flow sensitivity
- Continuous diagnostics detect sensor failure
- Optional hot-tap retractor assembly for maintenance during operation
- Maximum operating temperature: +450 °C
- Maximum operating pressure: 414 bar
- Integral or remote electronics, up to 150 m distance
- Suitable for SIL1 and SIL2 applications
