Temperature indicators

WIKA 100.0x - Plastic-cased bimetal thermomanometer for measuring pressure and temperature

Applications:

• Heating systems
• Combi boilers

Features:

• Simultaneous indication of temperature and pressure
• Case diameters: 63, 80 mm
• Plastic housing
• Measuring ranges: 0–16 bar and 0–150 °C

WIKA 100.1x - Steel-cased bimetal thermomanometer for measuring pressure and temperature

Applications:

• Heating systems
• Combi boilers

Features:

• Simultaneous indication of temperature and pressure
• Case diameters: 63, 80 mm
• Steel housing
• Measuring ranges: 0–16 bar and 0–150 °C

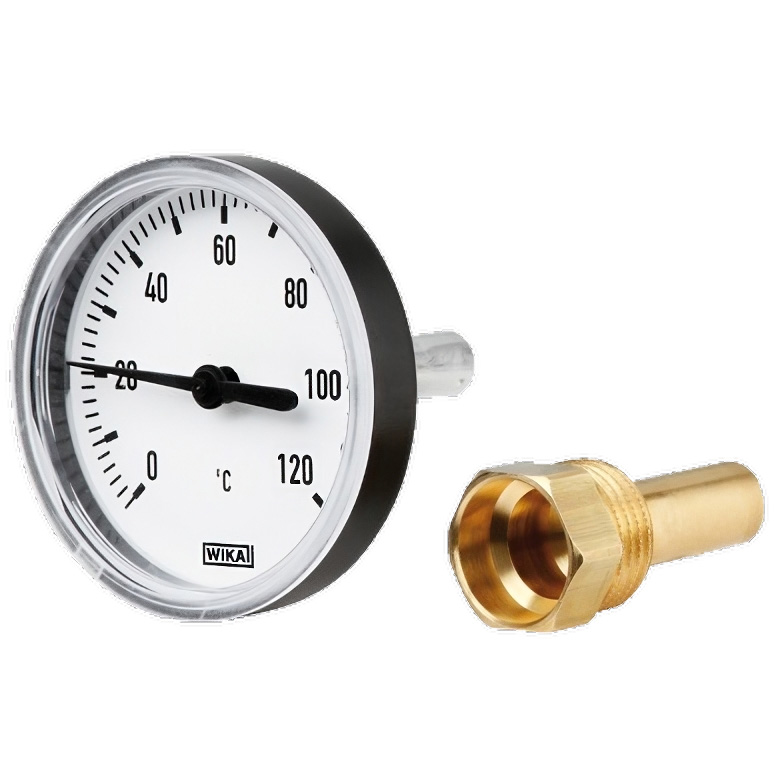

WIKA 46 - Bimetal thermometer for industrial heating

Applications:

• Heating systems
• Hot water tanks
• Solar collectors

Features:

• Reliable and cost-effective
• Case diameters: 50, 63, 80, and 100 mm
• Measuring ranges: –30 to +120 °C
• Aluminium, steel, or plastic housing
• Multiple installation options

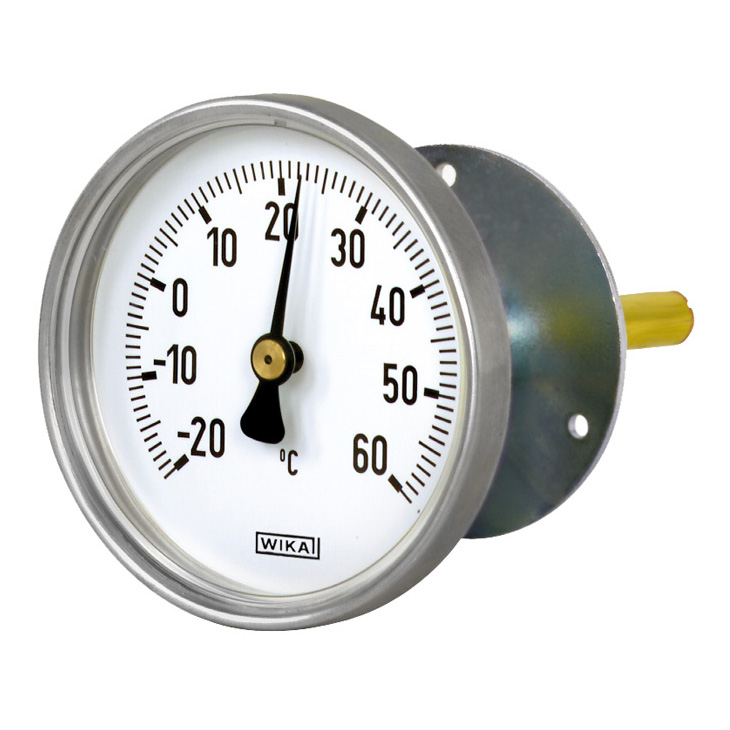

WIKA 48 - Bimetal thermometer for air-conditioning and refrigeration systems

Applications:

• Air-conditioning systems
• Refrigeration systems
• Ventilation systems

Features:

• Case diameters: 63, 80, 100, and 160 mm
• Measuring ranges: –30 to +120 °C
• Accuracy class: Class 2 (EN 13190)
• Aluminium case

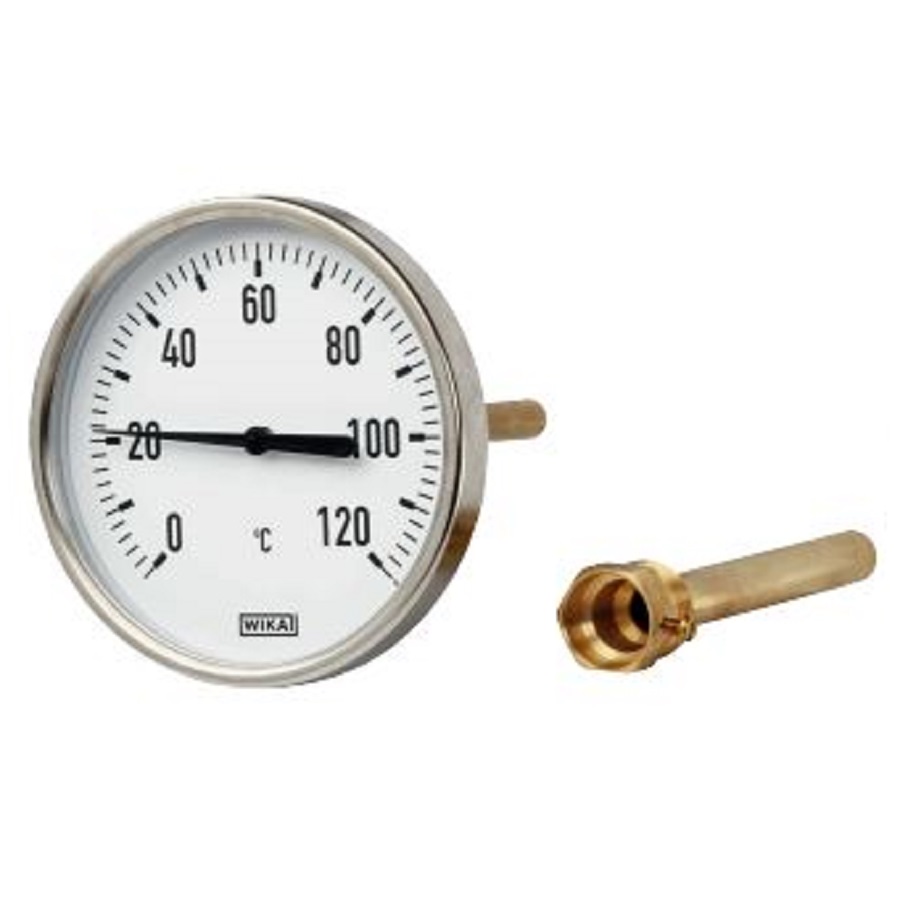

WIKA 50 - Bimetal Thermometer standard series

Applications (heating technology):

• Heating systems
• Boilers
• Solar collectors

Features:

• Case diameters: 63, 80, 100, and 160 mm
• Measuring ranges: –30 to +200 °C
• Accuracy: Class 2 (EN 13190)
• Aluminium case

Applications (industrial use):

• Machinery
• Tanks
• Pipelines
• Construction industry
• Heating

Features:

• Stainless steel case and stem
• 5 different process connections, various thermowells
• Bottom or back connection
• Measuring ranges: –30 to +500 °C

Case diameter vs. accuracy:

• NS 25, 33: ±5% (of scale range)
• NS 40, 50: Class 2 (EN 13190)
• NS 63, 80, 100, 160: Class 1 (EN 13190)

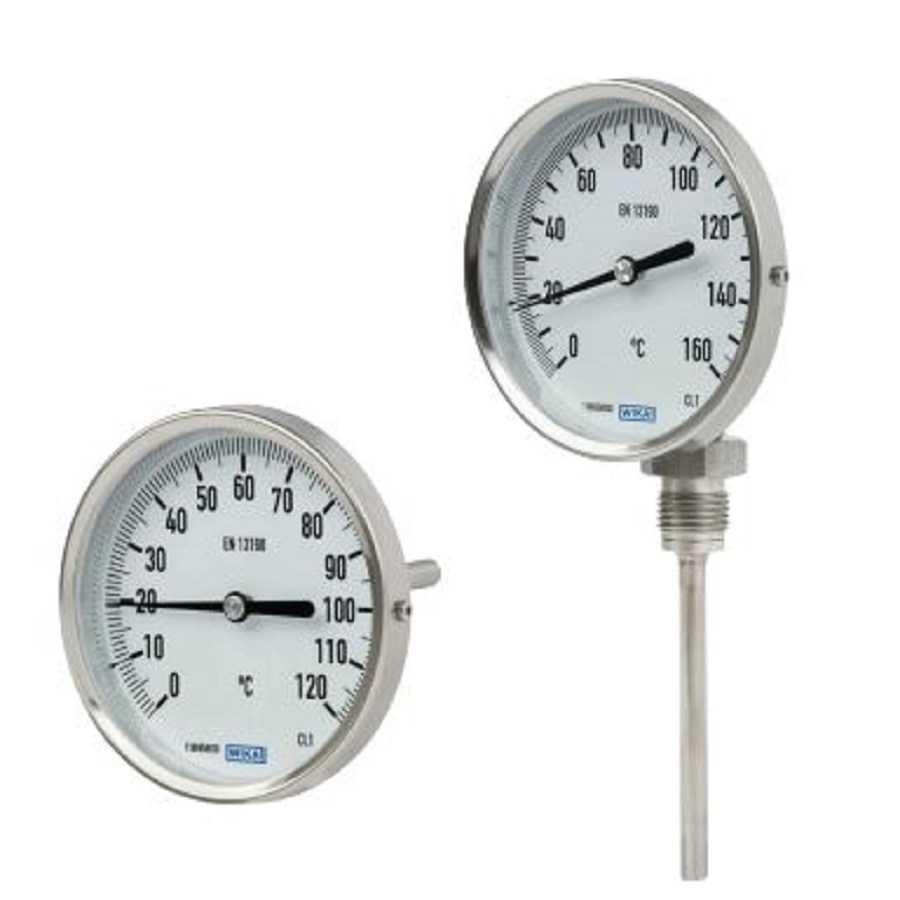

WIKA 52 - Bimetal thermometer industrial series

Applications:

• Machinery
• Tanks
• Pipelines
• Construction
• Heating

Features:

• Stainless steel case and stem
• 5 different process connections, various protective tubes available
• Bottom or back connection
• Measuring ranges: –30 to +500 °C

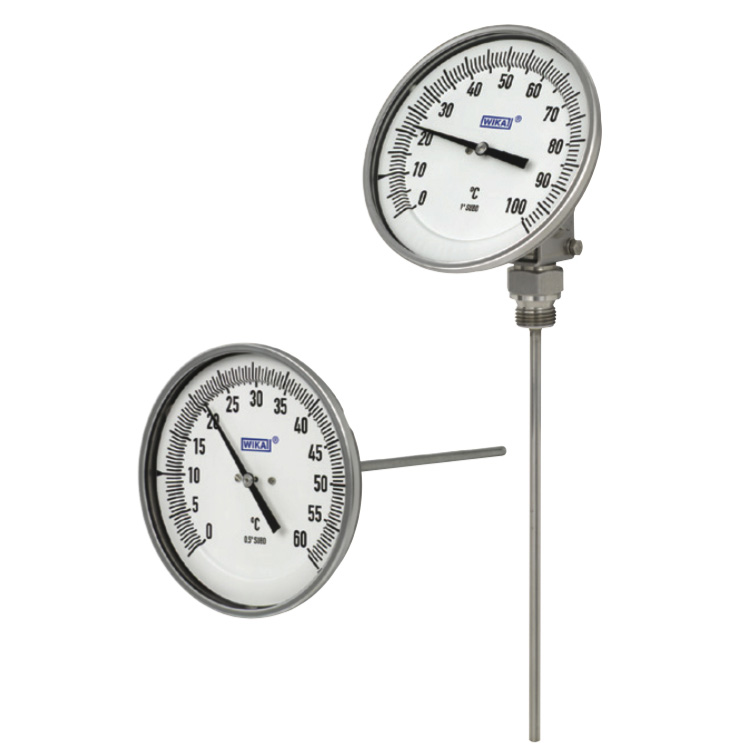

WIKA 53 - Bimetal thermometer industrial series

Applications:

• Chemical industry
• Food industry
• Facility management
• Aggressive media

Features:

• Stainless steel case and stem
• Optional rotatable and tiltable head
• IP65
• Universal application
• Rear zero adjustment
• Case diameters: 3″ and 5″
• Measuring ranges: –50 to +500 °C

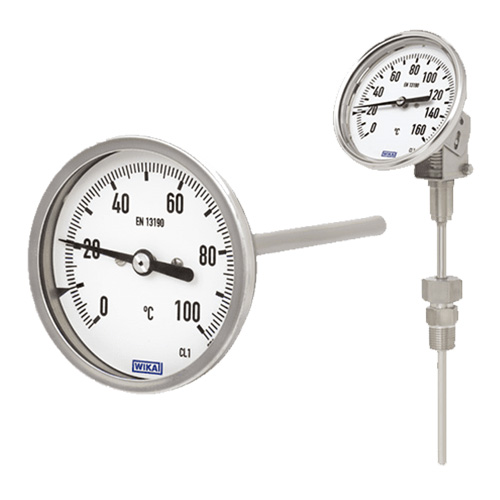

WIKA TG54 - Bimetal thermometer industrial series

Applications:

• Machine and equipment manufacturing
• Shipbuilding
• Facility management
• Optional liquid damping for high-vibration environments

Features:

• Stainless steel case and stem
• Optional rotatable and tiltable head
• Universal application
• Rear zero adjustment
• Case diameters: 63, 80, 100, and 160 mm
• Measuring ranges: –30 to +500 °C
• Accuracy: Class 1 (EN 13190)

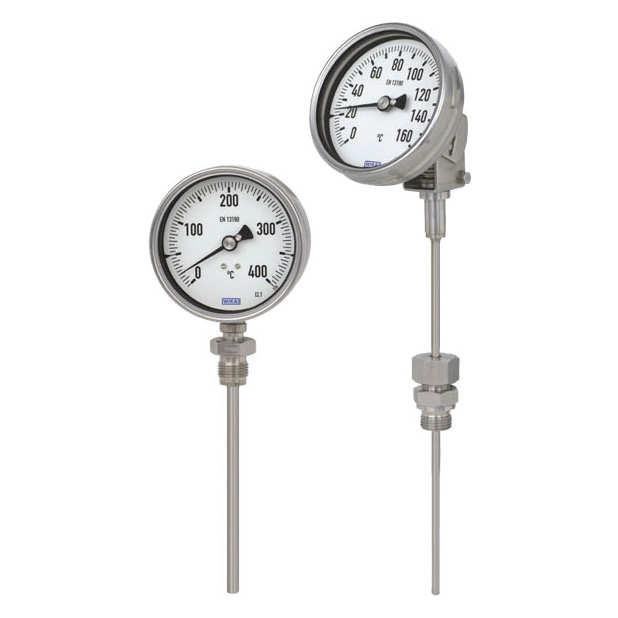

WIKA 55 - Bimetal thermometer, stainless steel version

Applications:

• Chemical industry
• Energy sector
• Machinery and general equipment manufacturing
• Food industry
• Extreme ambient temperatures

Features:

• Stainless steel case and stem
• User-friendly bayonet ring case
• Optional rotatable and tiltable head
• 6 different process connections
• Rear zero adjustment
• Case diameters: 63, 100, and 160 mm
• Custom stem lengths between 63 and 1000 mm
• Measuring ranges: –70 to +600 °C
• Accuracy: Class 1 (EN 13190)
• Optional ATEX approval

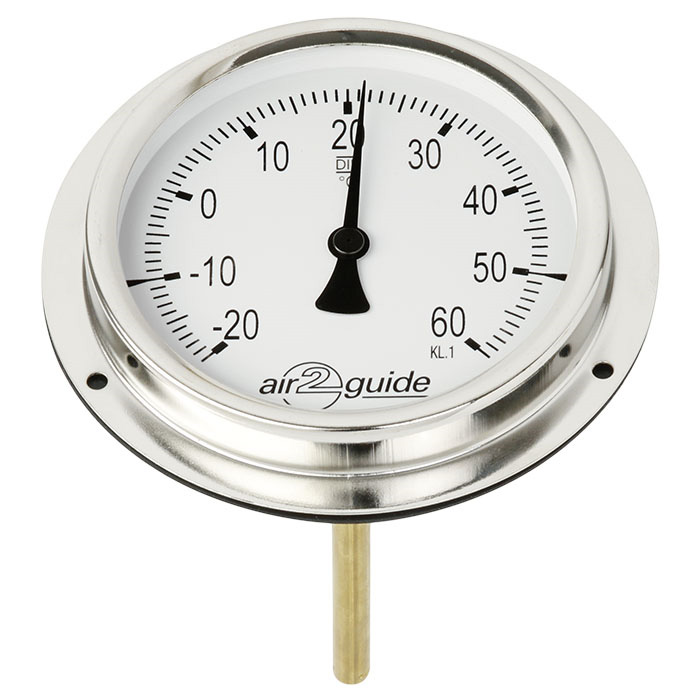

WIKA A2G-61- Analogue ventilation duct temperature sensor

Applications:

• Measuring gas temperature
• Ventilation and air-conditioning systems
• Temperature monitoring in air ducts

Features:

• Easy installation
• Various sensor lengths
• NBR sealing
• Case diameter: 100 mm
• Scale range: –20 to +60 °C
• Accuracy: Class 2 (EN 13190)

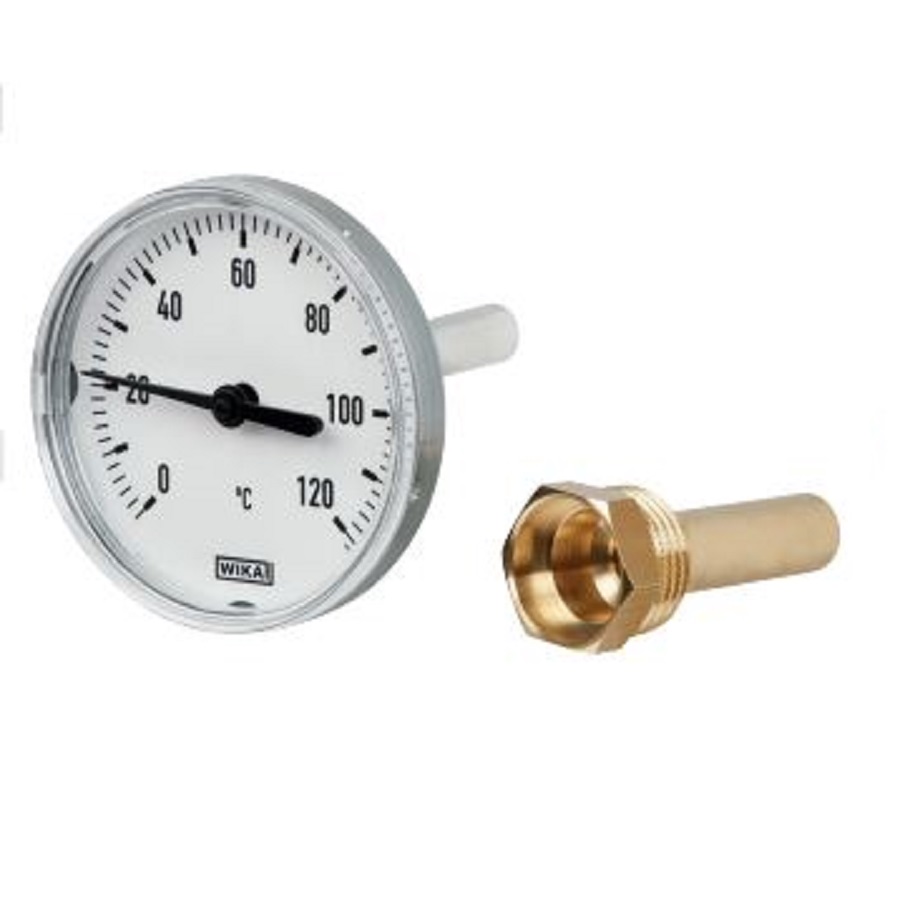

WIKA A43 - Bimetal thermometer for heating technology standard version

Applications:

• Heating systems
• Hot water tanks
• Solar collectors
• Heat transfer stations

Features:

• Reliable and cost-effective
• Case diameters: 60, 80, 100 mm
• Scale range: –30 to +120 °C
• Accuracy: Class 2 (EN 13190)

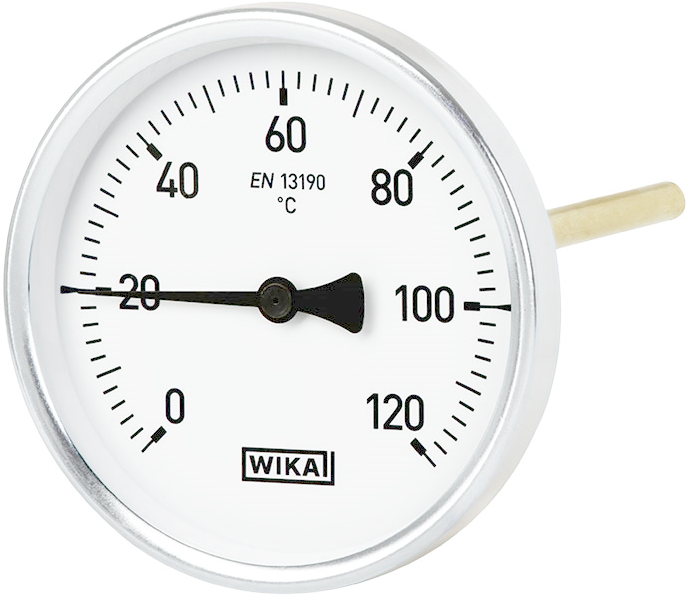

WIKA A51 - Bimetal thermometer for heating technology high-quality version

Applications:

• Heating systems
• Cooling and air-conditioning systems
• Ventilation systems

Features:

• Case diameters: 63, 80, and 100 mm
• Scale ranges: –30 to +250 °C
• Various process connections

Accuracy:

• With thermowell: Class 1 (EN 13190)
• With mounting flange: Class 2 (EN 13190)

WIKA THM10 Eco - Bimetal thermomanometer for pressure and temperature measurement

Applications:

• Heating systems
• Combi boilers (domestic hot water, heating)

Features:

• Simultaneous indication of temperature and pressure
• Case diameters: 63, 80 mm
• Measuring ranges: 0–10 bar and 0–120 °C
• Supplied with shut-off valve

Accuracy:

• Pressure: 2.5 (EN 837-1)
• Temperature: Class 2 (EN 13190)
