Pressure transmitters
Pressure transmitters
Pressure transmitters measure the pressure of liquids or gases in a pipe and convert the value into an electrical signal. This signal can be easily transmitted to a control system for monitoring, regulation, and analysis.
WIKA and Yokogawa pressure transmitters are used for measuring absolute, gauge, and differential pressure. Due to their high accuracy, they are highly suitable for use in industrial environments.
They provide excellent solutions for applications in the chemical, oil and gas, food, and construction industries, and are also ideal for maintenance and quality assurance tasks — even in potentially explosive atmospheres.
Choose from our transmitters!

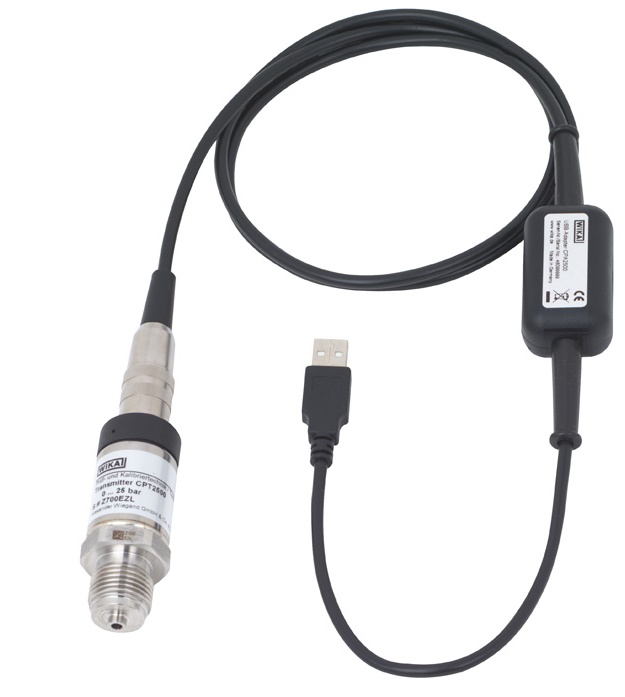

WIKA CPT-2500 – USB pressure sensor, for maintenance and service facilities, without external power supply
Applications:
- Maintenance and service facilities
- Quality assurance
- Process recording and monitoring
- Measurement of pressure peaks
Features:
- Adjustable sampling rate: 1 ms – 10 s
- Accuracy class: 0.2% (optional: 0.1%)
- No external power supply required (USB powered)
- USB soft 2500 configuration, data logging, and evaluation software
- Measuring range: 0.25 mbar – 1000 bar
Yokogawa EJA430E – Gauge pressure transmitter, intrinsically safe
Oval-shaped connection, wide range of applications
Applications:
- Chemical industry
- Oil and gas industry
- Food industry
- Construction industry
- Hazardous areas
Features:
- Explosion protection: Ex ia I/II C T4–T6, Ex d I/II C T6
- FM, CSA, SIL2 certified
- Measuring range: 0 to 500 bar
- Corrosion-resistant coating
- Digital display with local push-button configuration
- Output options: HART / BRAIN / Foundation Fieldbus / Profibus PA
- Oval flange process connection
Yokogawa EJA510E – Absolute pressure transmitter, intrinsically safe
For absolute pressure measurement, Wide range of applications
Applications:
- Chemical industry
- Oil and gas industry
- Food industry
- Construction industry
- Hazardous areas
Features:
- Explosion protection: Ex ia I/II C T4–T6, Ex d I/II C T6
- FM, CSA, SIL2 certified
- Measuring range: 0 to 500 bar
- Corrosion-resistant coating
- Digital display with local push-button configuration
- Output options: HART / BRAIN / Foundation Fieldbus / Profibus PA

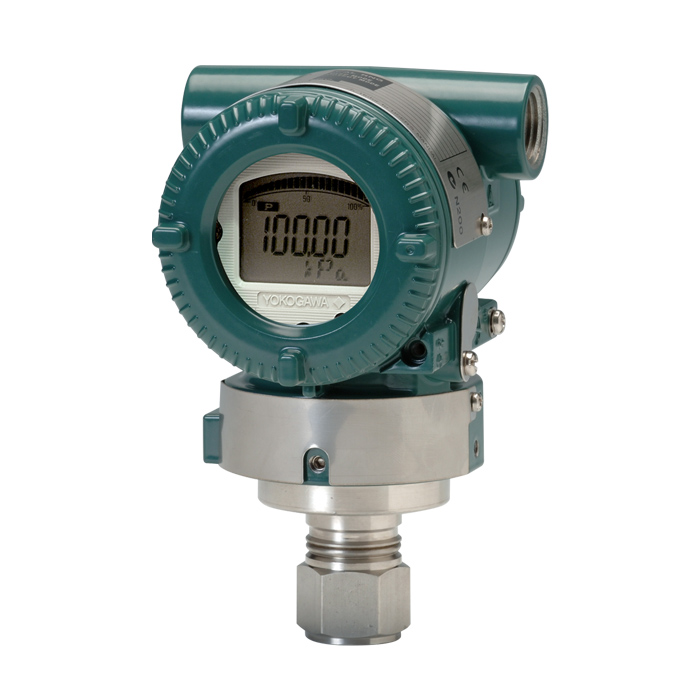

Yokogawa EJA530E – Gauge pressure transmitter, intrinsically safe
Widely applicable for gauge pressure measurement
Applications:
- Chemical industry
- Oil and gas industry
- Food industry
- Construction industry
- Hazardous areas
Features:
- Explosion protection: Ex ia I/II C T4–T6, Ex d I/II C T6
- FM, CSA, SIL2 certified
- Measuring range: 0 to 500 bar
- Corrosion-resistant coating
- Digital display with local push-button configuration
- Output options: HART / BRAIN / Foundation Fieldbus / Profibus PA

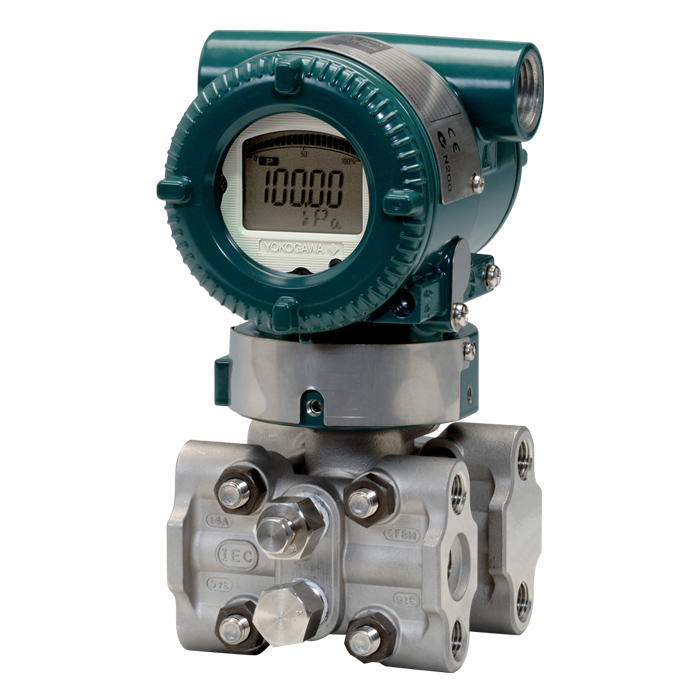

Yokogawa EJA110E – Differential pressure transmitter, intrinsically safe
Widely applicable for differential pressure measurement.
Applications:
- Chemical industry
- Oil & gas industry
- Food industry
- Construction industry
- Hazardous areas
Features:
- Explosion protection: Ex ia I/II C T4-T6, Ex d I/II C T6
- FM, CSA, SIL2 certification
- Measuring range: 5 mbar to 140 bar
- Corrosion-resistant coating
- Digital display with local push-button programming
- Output: HART / BRAIN / Foundation Fieldbus / Profibus PA
- Available with direct diaphragm seal or via capillary tubing
