Diaphragm valves
Diaphragm valves
Diaphragm valves are well-suited for a wide range of industrial applications where reliable and durable shut-off is required. Saunders diaphragm valves offer resistance to corrosion, wear, and leakage, and are available with various linings.
They are equally ideal for hydrocarbon services, highly abrasive environments, and potable water applications. With more than 75 years of experience and in-house lining design, these products guarantee high quality and reliability.
Choose from our diaphragm valves!
Saunders ETFE diaphragm valve
Ethylene tetrafluoroethylene (ETFE) provides excellent corrosion resistance and robustness, with the highest wear resistance among all fluoropolymer linings.
Features:
- Highest wear resistance of all fluorocarbon linings
- Superior quality ensured by fully automated, in-house injection molding process
- Maintenance-free body bolt design eliminating both internal and external leakage
- Excellent corrosion protection and scratch resistance for extreme environments

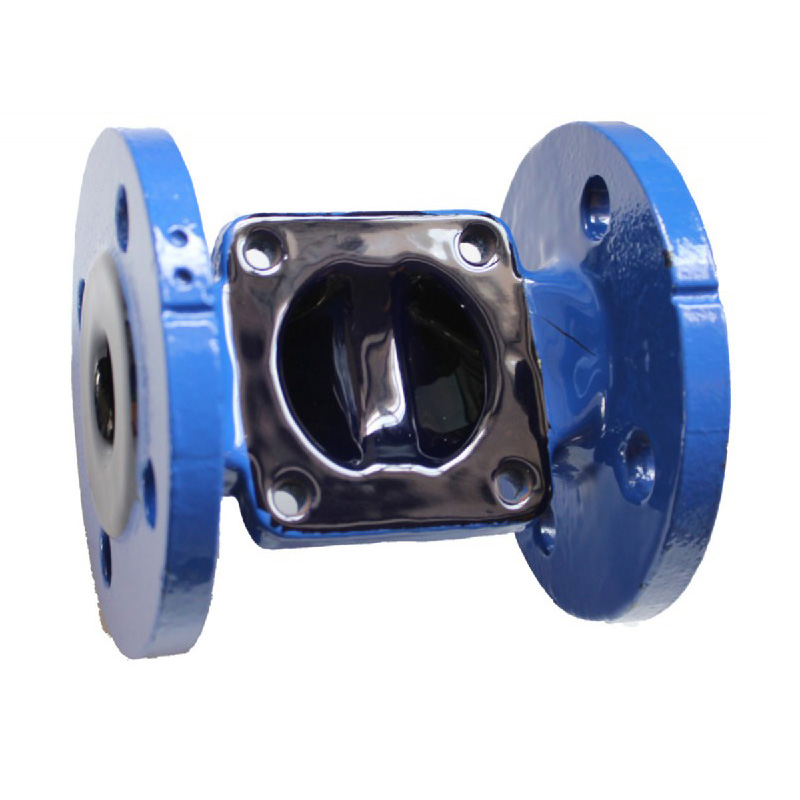

Saunders glass-lined diaphragm valve
Since its introduction in the 1950s, the Saunders blue borosilicate glass lining option has provided the best combination of corrosion and abrasion resistance of any valve lining.
Features:
- Excellent corrosion and abrasion resistance
- Smoother flow – especially with viscous fluids
- High purity
- Cost-effective – lower priced than exotic alloys
Saunders PFA diaphragm valve
Saunders PFA diaphragm valves offer the highest chemical resistance of all Saunders products and are ideal for high-purity applications.
Features:
- FDA-approved with full traceability, without cross-contamination from unused polymers of previous batches
- Maintenance-free body bolt design eliminating both internal and external leakage
- Maximum quality ensured by fully automated, in-house injection molding process

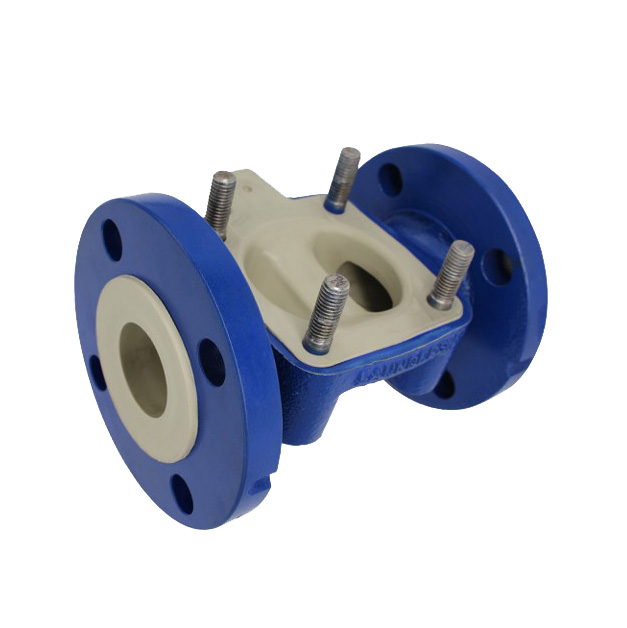

Saunders PP diaphragm valve
Polypropylene provides an economical plastic lining solution. It offers good chemical resistance, making it widely used across many industries.
Features:
- Maximum quality ensured by fully automated, in-house injection molding process
- Maintenance-free design eliminating both internal and external leakage
- Excellent corrosion protection and scratch resistance for extreme environments

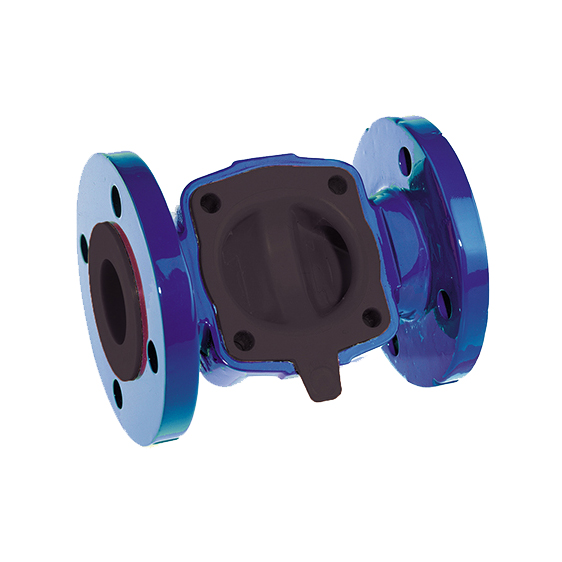

Saunders PVDF diaphragm valve
Polyvinylidene fluoride (PVDF) lining is recognizable by its black color. It offers the greatest permeability resistance of all valve linings and is used in the most critical applications.
Features:
- Lowest permeability of all plastic-lined product ranges
- Maximum quality ensured by fully automated, in-house injection molding process
- Maintenance-free design eliminating both internal and external leakage
- Excellent corrosion protection and scratch resistance for extreme environments
Saunders butyl rubber lined valve
The Saunders butyl (isobutylene isoprene) rubber lining combines excellent resistance to corrosion, abrasion, and permeation. It is also suitable for potable water applications, as it is WRAS approved.
Features:
- Proprietary in-house formulation with more than 85 years of rubber processing experience
- Available in both Weir type A and straight-through KB and K type designs
Saunders hard natural rubber lined valve
The Saunders ebonite-filled hard natural rubber lining offers good chemical and abrasion resistance. It is also excellent for potable water applications, as it is WRAS approved.
Features:
- Proprietary in-house formulation with more than 85 years of rubber processing experience
- Available in both Weir type A and straight-through KB and K type designs
Saunders polychloroprene rubber lined valve
The Saunders polychloroprene rubber lined valve provides the perfect solution for hydrocarbon services, including those containing abrasive slurries.
Features:
- Proprietary in-house formulation with more than 85 years of rubber processing experience
- Available in both Weir type A and straight-through KB and K type designs

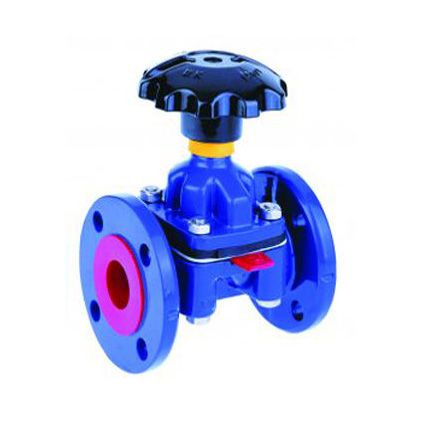

Saunders soft natural rubber lined valve
The Saunders soft natural rubber lining, easily recognizable by its distinctive reddish-brown color, is ideal for highly abrasive services. It is also excellent for potable water applications, as it is WRAS approved.
Features:
- Proprietary in-house formulation with more than 85 years of rubber processing experience
- Available in both Weir type A and straight-through KB and K type designs
