Ball valves
Ball valves
Ball valves regulate the flow of liquids or gases in pipelines. The closing element is a spherical body with a bore, which is rotated during opening or closing of the valve.
Xomox ball valves feature a modular design, are maintenance-free, require low operating torque, and can be used across a wide temperature range.
Choose from our valves!

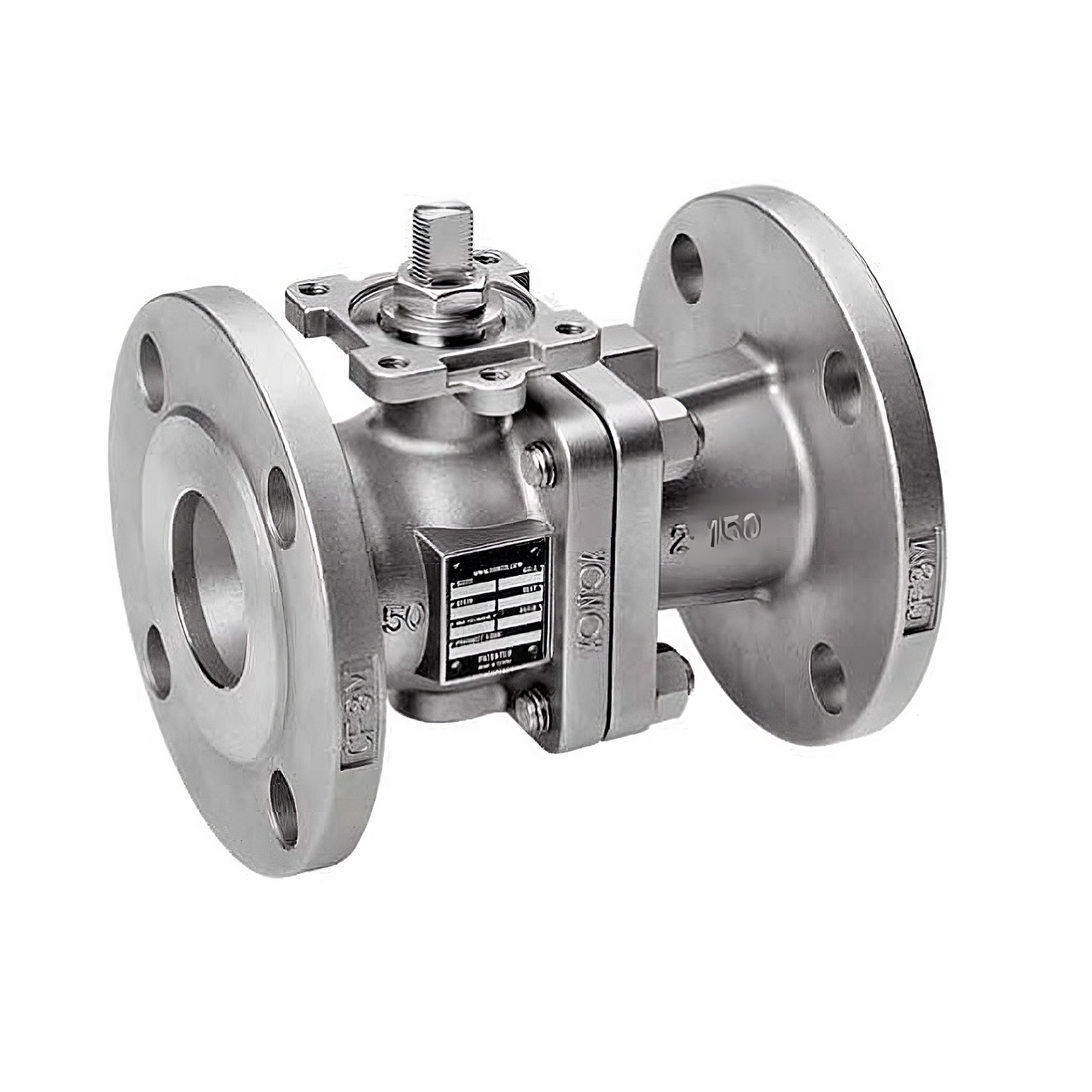

Xomox KVA, KVL, KVK ball valves
Features:
- Modular design, DIN, ANSI
- Maintenance-free
- Low torque requirement
- Minimal dead space
- Split body design
- Face-to-face dimensions according to DIN EN 558-1 (F4 & F1) and ANSI B16.10
- Full bore
- Antistatic device
- Stainless steel hand lever
- Lockable handle
Specifications:
- Size: DN 15–100 (1/2″–4″)
- Pressure rating: PN 16–40 (ANSI Class 150–300)
- Temperature: –40 °C to +200 °C (up to +400 °C with metal seat)
- Materials: carbon steel (1.0619) and stainless steel (1.4408)

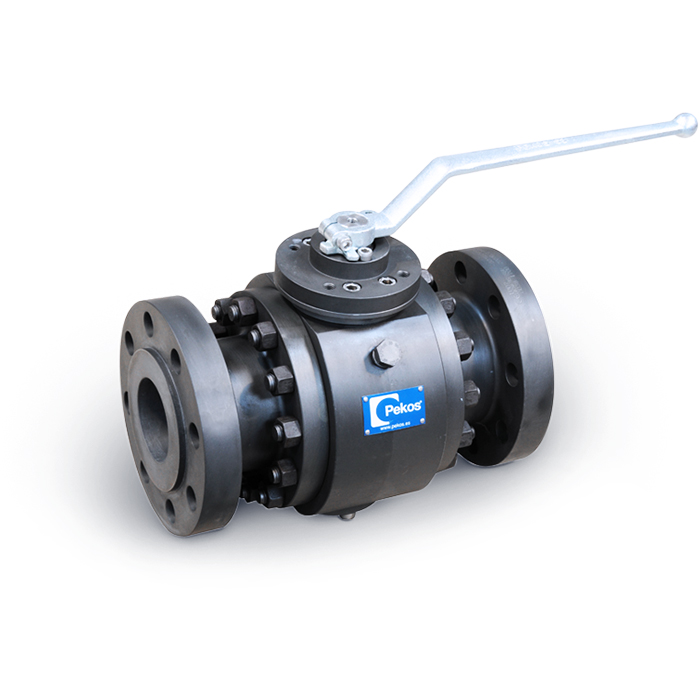

PEKOS ball valves
Provide a wide range of technical solutions.
Features:
- DIN, ANSI
- Available with both metal and soft seats
- Split body design
- Floating ball, guided and trunnion-mounted options
- Double body sealing
- Advanced stem sealing system (flat stem seal; graphite and PTFE seals)
Specifications:
- Size: DN 15–300 (up to 600 in some cases) / 1/2″–12″ (up to 24″)
- Pressure rating: PN 10–420 (Class 150–2500)
- Temperature: –40 °C to +250 °C (up to +640 °C on request)
- Materials: carbon steel (1.0619) and stainless steel (1.4408), with additional options available on request (1.6220, 1.43xx, Duplex, Hastelloy, etc.)
Get in touch with us!
With 35 years of accumulated engineering expertise and extensive experience gained from leading players in Hungarian industry, we look forward to hearing from you.
