Relief valves
Relief valves
Relief valves play a vital role in protecting pressurized systems, preventing damage caused by overpressure.
Two outstanding types from Baker Hughes include the Consolidated 1900/P safety valve and the Consolidated 2900-40 pilot-operated safety relief valve.
These valves provide reliable protection in various industrial applications, ensuring smooth operation and long service life.
Choose from our relief valves!

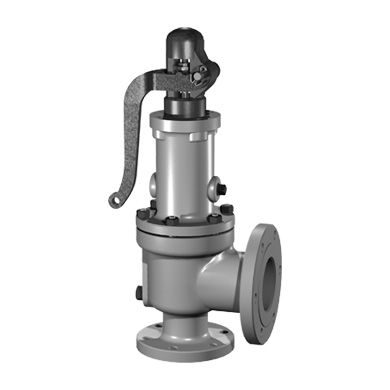

Consolidated 1900/P Safety Relief Valve
- Primarily used in power generation
- Applications: heat recovery steam generators, organic fluid vaporizers
Inlet Data:
- Size: 1″ – 8″
- Pressure class: ASME 150 – 2500
Outlet Data:
- Size: 2″ – 10″
- Pressure class: ASME 150 – 300
Specifications:
- Set pressure range: 0.3 – 400 bar
- Temperature range: -29 °C to +450 °C
Consolidated 2900-40 Pilot-Operated Safety Relief Valve
- Primarily used in power generation
- Applications: heat recovery steam generators
Inlet Data:
- Size: 1″ – 12″
- Pressure class: ASME 150 – 2500
Outlet Data:
- Size: 2″ – 16″
- Pressure class: ASME 150 – 300
Specifications:
- Set pressure range: 3 – 400 bar
- Temperature range: -29 °C to +260 °C (above 260 °C with heat exchanger)
Get in touch with us!
With 35 years of accumulated engineering expertise and extensive experience gained from leading players in Hungarian industry, we look forward to hearing from you.
