Rotary control valves
Rotary control valves
Baker Hughes offers globally recognized, high-quality rotary control valves. With more than one million valves successfully installed across diverse industries and applications, they deliver simplified maintenance, reduced downtime, and lower lifecycle costs.
These rotary valves continue to provide outstanding reliability, uniquely combining high capacity with a wide control range. Available in various sizes, they can be easily integrated into existing systems.
Choose from our valves!
Masoneilan Series 35002 Camflex – Rotary Control Valve
This valve combines the superior control characteristics of a traditional globe valve with rotary operation, creating a solution capable of replacing at least 80% of conventional control valves.
Size:
- 1–16″ (25–400 mm)
Connections and Pressure Ratings:
- Flanged: ANSI 150–600
- Flangeless: ANSI 150–600, UNI-DIN 10–100
- Threaded: NPT (1–2″)
Body Materials:
- Carbon steel
- Stainless steel
- High-nickel alloy
Characteristics:
- Linear

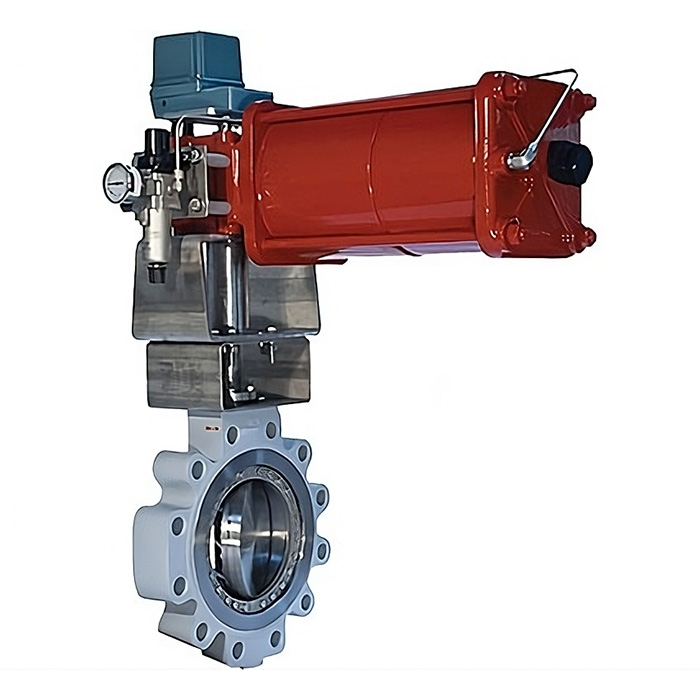

Masoneilan Series 33000 – Triple-offset butterfly valve
The Masoneilan Series 33000 triple-offset butterfly valve features new performance-enhancing operational characteristics, enabling simpler and more efficient process control.
Size:
- 3–48″ (80–1200 mm)
Connections and Pressure Ratings:
- LUG
- Double flanged (short)
- Double flanged (long)
- ANSI 150–600
- UNI-DIN 10–100
Masoneilan Series 36005 V-Max™ – Segment ball control valve
These high-capacity, V-port segment ball valves offer automatic throttling capability, flexible shut-off options, simplified maintenance, and enhanced operational reliability.
Size:
- 1–12″ (25–300 mm)
Connections and Pressure Ratings:
- Flanged: ANSI 150–300
Body Materials:
- Carbon steel
- Stainless steel
Characteristics:
- Equal percentage
Get in touch with us!
With 35 years of accumulated engineering expertise and extensive experience gained from leading players in Hungarian industry, we look forward to hearing from you.
