Globe control valves
Globe control valves
Globe control valves regulate the flow of liquids or gases in pipelines. The regulation is carried out by a sliding stem located inside the valve body.
Masoneilan globe control valves are available with linear, equal percentage, or quick-opening characteristics, and can also be ordered with bellows seals and anti-cavitation options.
Choose from our valves!
Masoneilan Series 10000 – Double-seated control valve with top and bottom stem guiding
Connections, Pressure Ratings:
- Flanged
- ANSI 150–1500
- DIN 10–250
- Welded – BW or SW
- Threaded – NPT from 3/4″ to 2″
Body Materials:
- Carbon steel
- Stainless steel
- Chrome-moly
Characteristics:
- Linear
- Equal percentage
- Quick opening

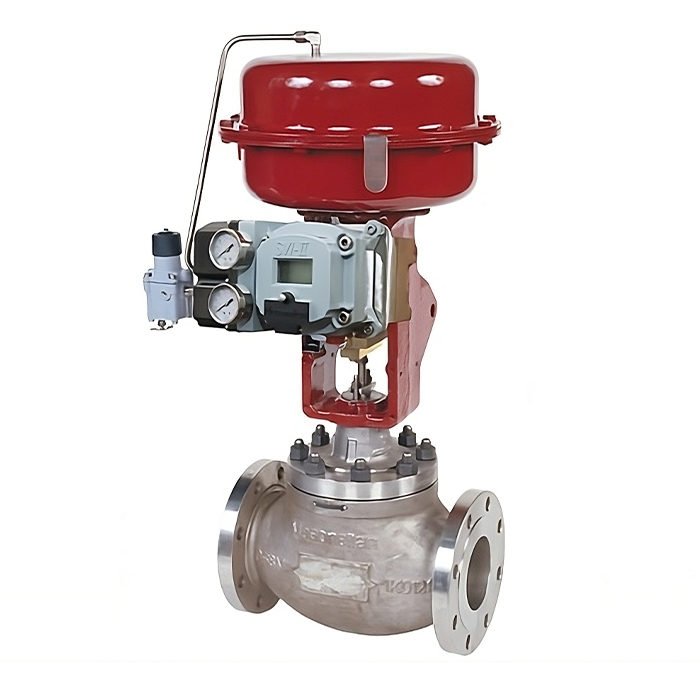

Masoneilan Series 21000 – Standard unbalanced single-ported globe valve
Features:
- Standard unbalanced single-ported globe valve
- Pneumatic actuator
- Seat/plug: available in various materials and designs
- Sizes: from 3/4″ to 8″ (20–200 mm)
Connections, Pressure Ratings:
- ANSI 150–2500, DIN 10–400
- Flanged, welded, threaded
Body Materials:
- Carbon steel
- Stainless steel
- Chrome-moly
Characteristics:
- Linear
- Equal percentage
Masoneilan Series 28000 Varipak – Compact control valve for low flow applications
Features:
- Available with bellows seal and anti-cavitation options
- Sizes: from 1/2″ to 1″ (15–20 mm)
Connections, Pressure Ratings:
- Flanged, wafer type
- ANSI 150–600, DIN 10–100
- Threaded NPT from 1/2″ to 1″
Body Materials:
- Stainless steel
- Monel
- Hastelloy C
- Alloy 20
Characteristics:
- Linear
Masoneilan Series 41005 – Balanced single-ported globe valve
Features:
- Size: DN50–DN600
- Pneumatic actuator
- Seat/plug: available in various materials and designs with pressure balancing
Connections and Pressure Ratings:
- Flanged: ANSI 150–2500, DIN PN10–PN400
- Welded
- Threaded
Body Materials:
- Carbon steel
- Stainless (corrosion-resistant) steel
- Chrome-moly
Characteristics:
- Linear or equal percentage

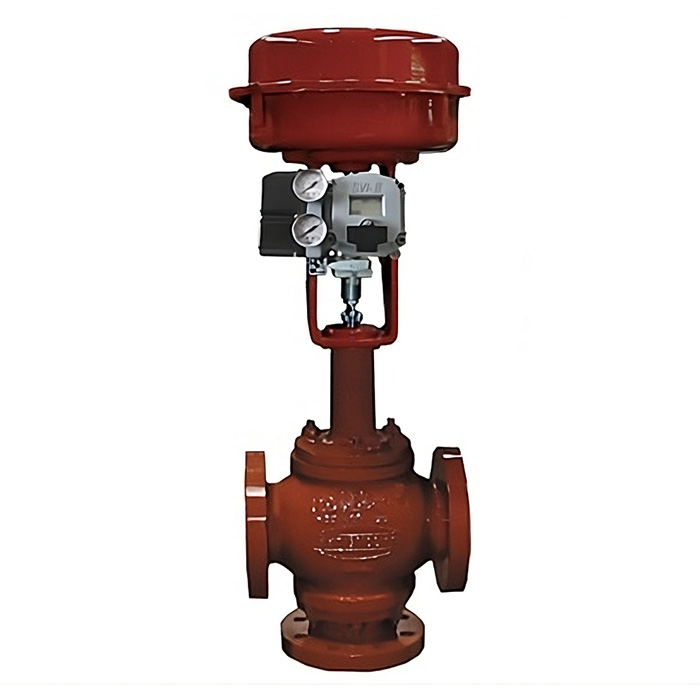

Masoneilan Series 80000 – Three-way control valve
Connections and Pressure Ratings:
- Flanged: ANSI 150–600, UNI-DIN 10–100
- Welded
- Threaded
Body Materials:
- Carbon steel
- Stainless (corrosion-resistant) steel
- Chrome-moly
Characteristics:
- Linear
